FTLX8571D3BCVIT1 Technical Specifications

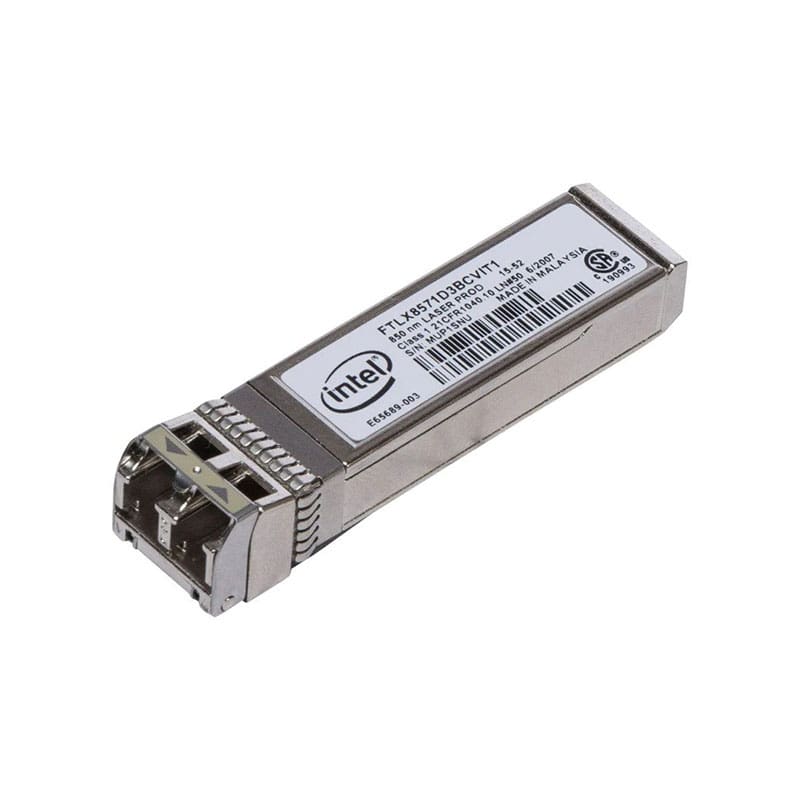

Intel 10G SFP+ SR Optical Transceiver Module
Brand: Intel
Condition: Factory New Sealed
Availability: In Stock
Hot-pluggable: SFP+ footprint
Supports rate selectable: 1.25 Gb/s or 9.95 to 10.3 Gb/s bit rates
Power dissipation: < 1 W
RoHS-6 compliant: (lead-free)
Commercial temperature range: 0 °C to 70 °C
Single 3.3 Vdc power supply
Max. link length 300 m on 2000 MHZ-km MMF (SR), 10 km (LR)
Uncooled 850 nm VCSEL laser (SR)
Uncooled 1310 nm DFB laser (LR)
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
shipping: Typically within 2 Business Days
Warranty: 3 Years
