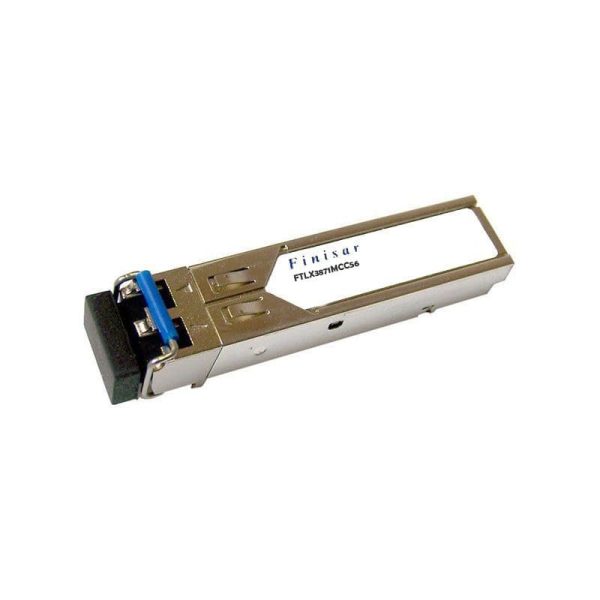

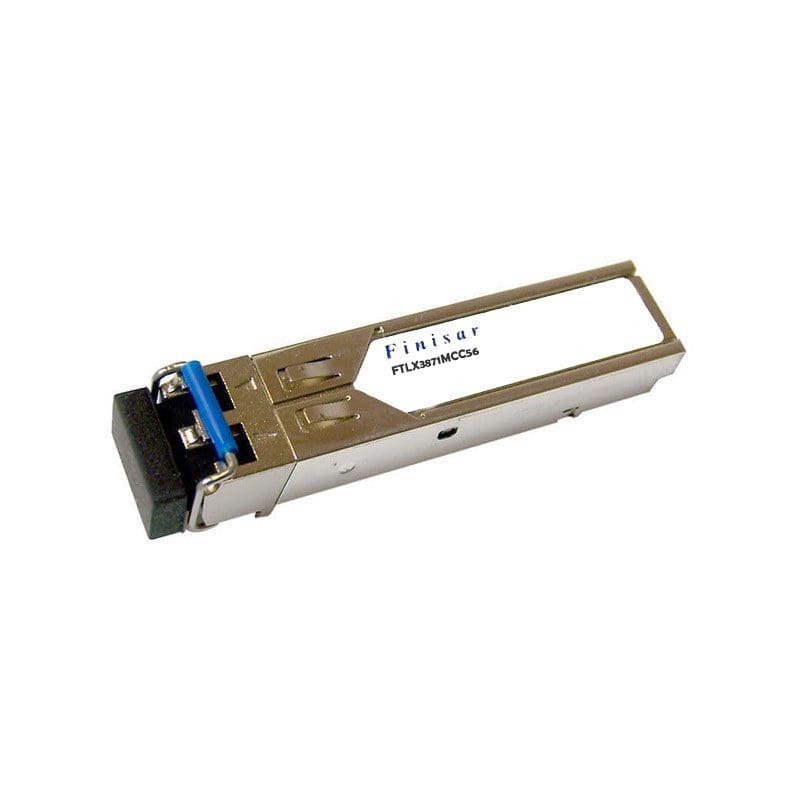

FTLX3871MCC56 Technical Specifications
TX/RX Optical Fiber 11.3Gbps
Data Rate 11.3 Gbps 10 Gigabit Ethernet
Maximum Fall Time 0.028 ns
Mounting Snap Fit To Panel Mount
Operating Supply Voltage 3.1400, 3.4600 V
Operating Temperature -5 to 70 °C
Pin Count 20
Product Dimensions 56.5 x 14.7 x 11.9 mm
Supplier Package SFP Plus
Type TX/RX
Wavelength 1532.68 nm
