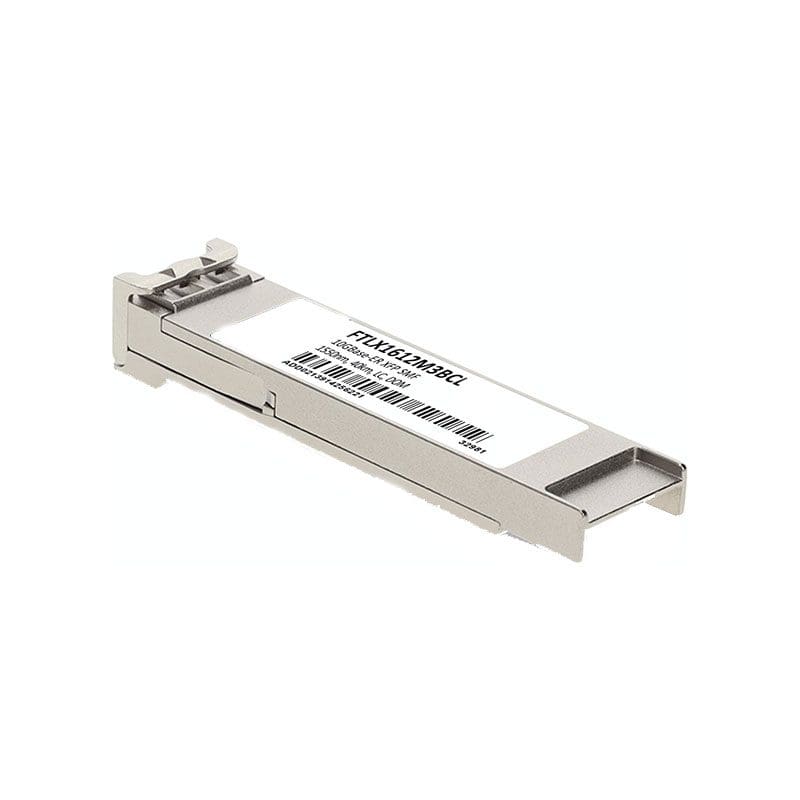

FTLX1612M3BCL Technical Specifications
Finisar 10GBASE-ER XFP 1550NM 40KM LC SMF
Manufacturer: Finisar
Supports 9.95Gb/s to 11.3Gb/s bit rates 10 Gigabit Ethernet
Supports 8.5Gb/s Fibre Channel in CDR Bypass mode SMF
Maximum link length of 40km
Temperature-stabilized 1550nm 800 ps/nm EML transmitter
3.3V and 5V power supplies required
LC Duplex connector
Power dissipation < 3.0W
Built-in digital diagnostic functions
Commercial temperature range: -5°C to 75°C
Physical
Mount: Panel
Technical
Connector Type: LC, LC Duplex
Max Operating Temperature: 75 °C
Min Operating Temperature: -5 °C
Operating Supply Voltage: 5.25 V
Rise Time: 38 ps
Wavelength: 1.55 µm
