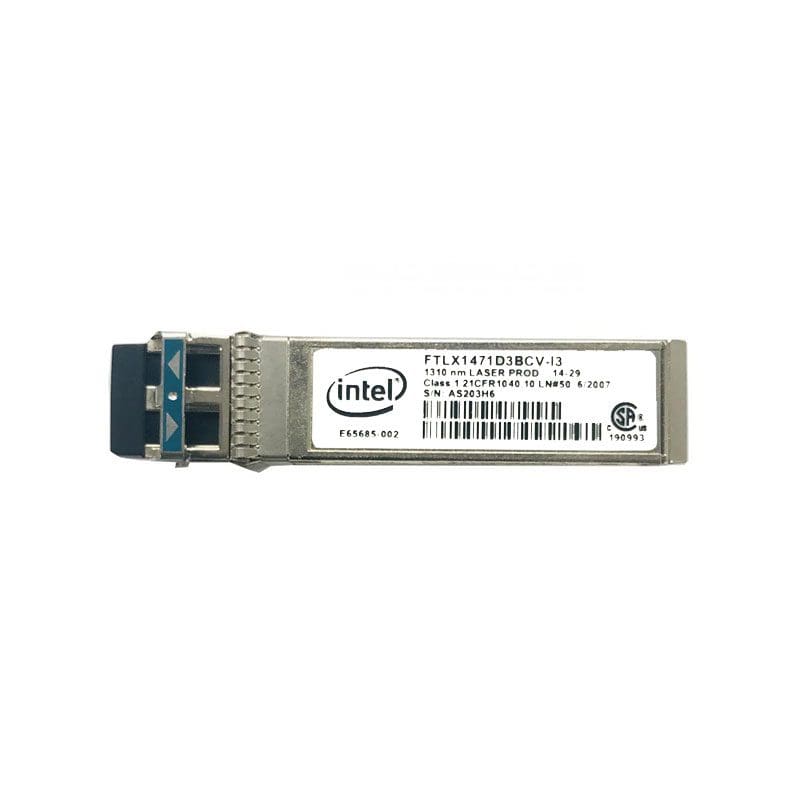

FTLX1471D3BCV-I3 Technical Specifications
Intel SFP Transceiver Module Plug-In 1310
Media Type: Single-Mode Fiber (SMF)
TX Wavelength: 1310 nm
RX Wavelength: 1310 nm
Minimum Optical Budget: 6 dB
Maximum Distance: 10km
Supported Data Rate: 1.25-10.31
Gbps Supported Applications: 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps)
DDM/DOM: Support
Temperature Range: Standard 0°-70°C
Connectors: Double LC
Tx Wavelength Bandwidth: 100 nm (1260-1360 nm)
Rx Wavelength Bandwidth: 100 nm (1260-1360 nm)
Minimum Transmitting Power: -8 dB
Maximum Transmitting Power: -0.5 dB
Receiver Sensitivity: -14 dBm
Receiver Overload: 0.5 dBm
Dispersion: 70-100 ps/nm
Transmitter Type: DFB Laser
Receiver Type :PIN photodiode
Power: +3.3V single power supply
Chipset: MAXIM, MINDSPEED, SEMTECHCompliance:CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA
Transceiver Type: SFP+
