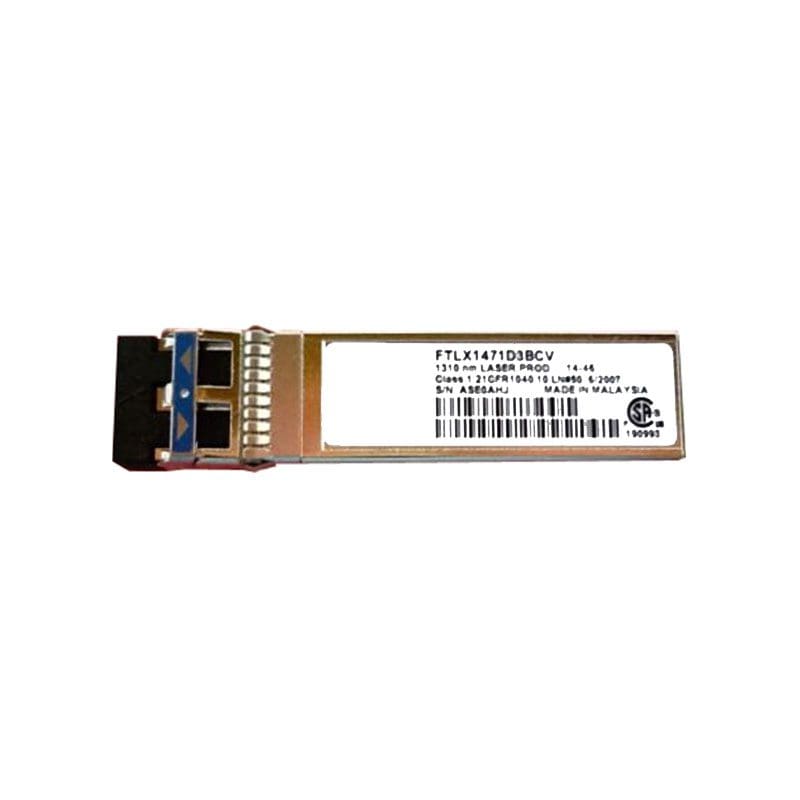

FTLX1471D3BCV Technical Specifications
Finisar Transceiver Module
Manufacturer: Finisar
Hot plug gable SFP+ footprint
Supports rate selectable 1.25 Gb/s
or 9.95 to 10.3 Gb/s bit rates 10 Gigabit Ethernet
Power dissipation < 1W
Commercial temperature range
-5°C to 70°C
Single 3.3V power supply
Maximum link length of 10km
Uncooled 1310nm DFB laser
Receiver limiting electrical
interface
LC Duplex connector
Built-in digital diagnostic functions
Product: Transceivers
Wavelength: 1310 nm
Data Rate: 10.5 GBd
Fibre Type: Singlemode
Form Factor or Case Style: SFP+
Rise Time: –
Emitting Source: Laser
Operating Supply Voltage: 3.3 V
Minimum Operating Temperature: – 5 C
Maximum Operating Temperature: + 70 C
Application: Ethernet, Fibre Channel
Connector Type: LC
Transmission Distance: 10 km
Brand: Coherent
Mounting Style: Snap-In
Peak Wavelength: 1355 nm
Product Type: Fiber Optic Transmitters, Receivers, Transceivers
