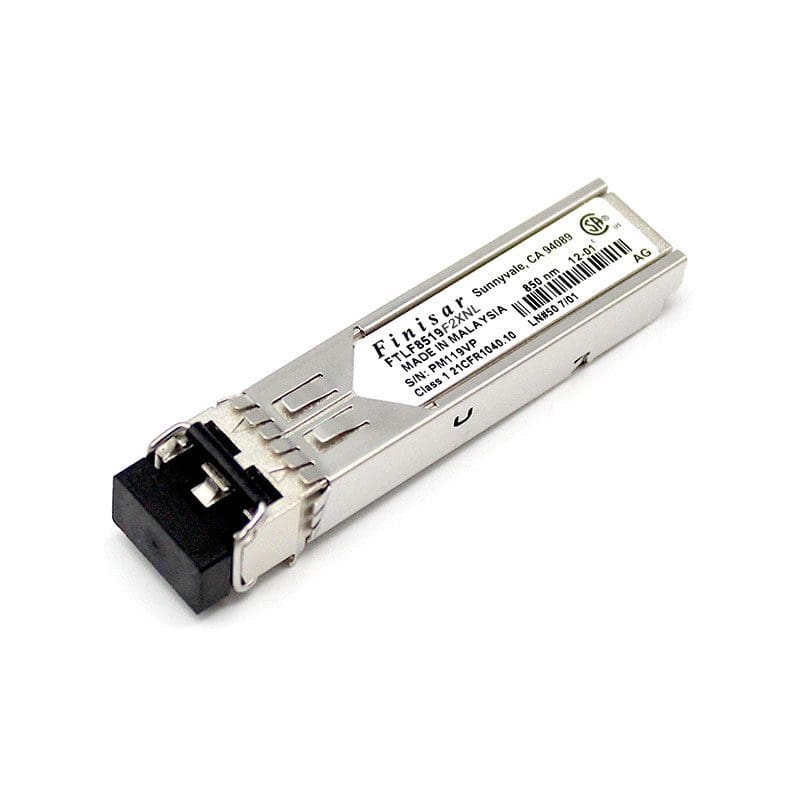

FTLF8519F2xNL Technical Specifications
Finisar 1000BASE-SX and 2G Fibre Channel
Manufacturer: Finisar
Up to 2.125 Gb/s bi-directional data links Fast Ethernet
Standard 2×5 pin SFF footprint
850nm Oxide VCSEL laser transmitter
LC Duplex connector
Up to 500m on50/125µm MMF, 300m on 62.5/125µm MMF
Metal enclosure, for lower EMI
Single 3.3V power supply
Low power dissipation<750mW
Extended operating temperature range: -20°C to 85°C
