FTLF1429P3BCV-QL Technical Specifications

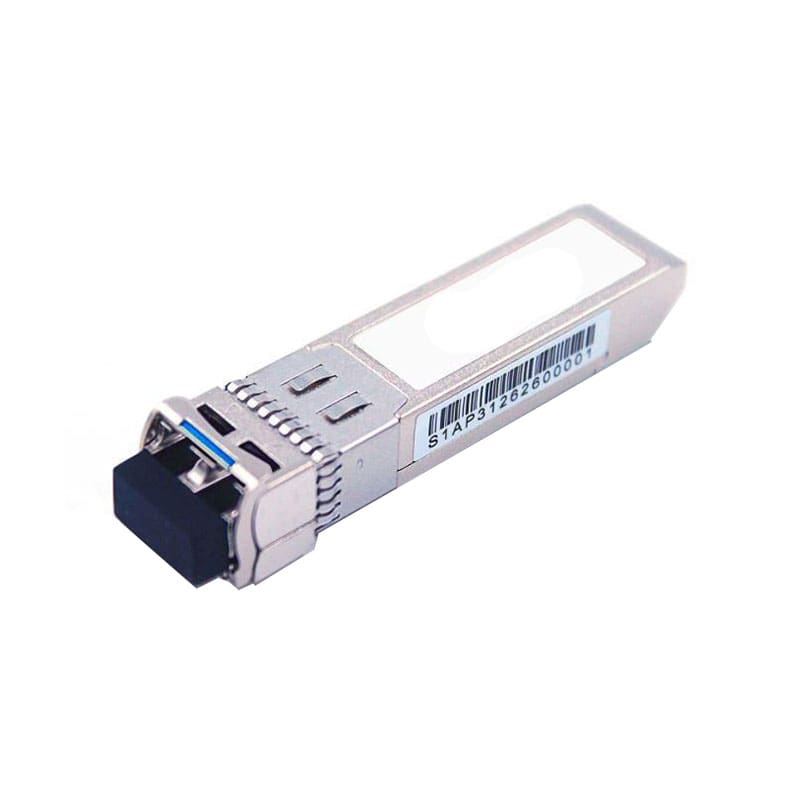

Genuine Qlogic 16GB FC 1310nm 10km LW SFP+ Transceiver
Tri-Rate 4.25/8.5/14.025 Gb/s Fibre Channel through Rate Select
10GBASE-LR/LW 10G Ethernet
Up to 14.025 Gb/s bi-directional data links
Hot-pluggable SFP+ footprint
Built-in digital diagnostic functions
1310nm DFB laser transmitter
Duplex LC connector
RoHS compliant and Lead Free
Up to 10 km on 9/125μm SMF
Metal enclosure, for lower EMI
1 W maximum power consumption with established link
Single 3.3V power supply
Operating temperature range: -5°C to 85°C
Specifications
Type: Networking
Brand Name: Qlogic
Device Type: Transceiver
Manufacturer QLogic Corp
Connector: Dual LC
