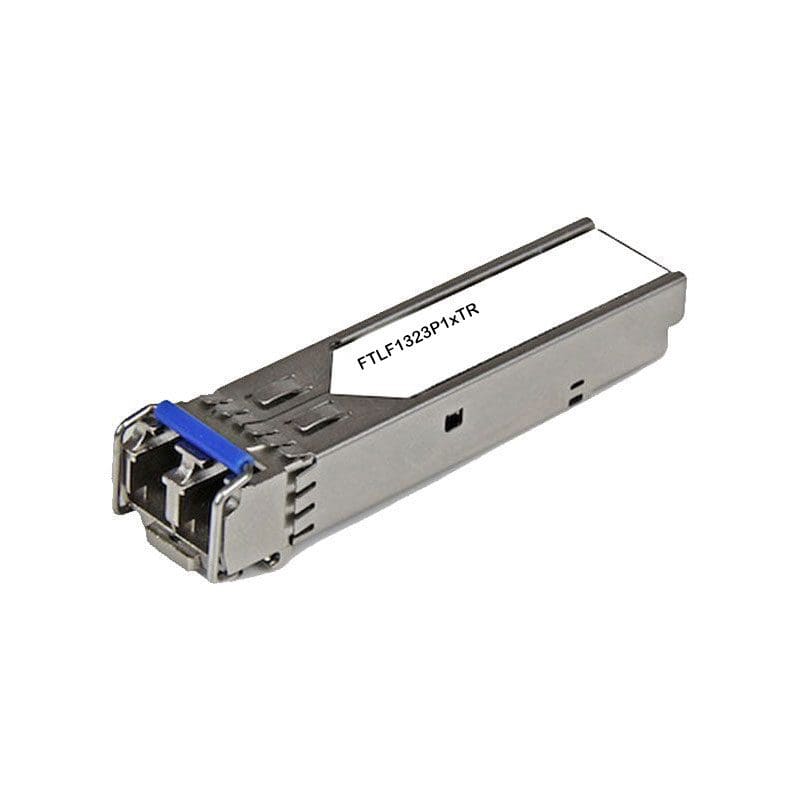

FTLF1323P1xTR Technical Specifications
Finisar Transceiver Module
Manufacturer: Finisar
Manufacturer: FINISAR
Description: OC-3 SR-1/STM I-1 or OC-3 IR-1/STM S-1.1 SFP Optical Transceiver
Applications SONET OC-3 IR-1 / SDH STM S-1.1, SONET OC-3 SR / SDH STM I-1, Suitable for Fast Ethernet
Connections & Interface: Connector: LC Connector
Interface: 2-Wire
Data Rate: 155 Mb/s Fast Ethernet
Wavelength: 1260 to 1600 nm
Distance/Reach: 15 km
Output Power: -15 to -8 dBm
Fiber Modes: Single Mode Fiber SMF
Form Factor: SFP
Receiver Sensitivity: -28 to -8 dBm
Power Dissipation: 0.7 W (700 mW)
Tx Power: -15 to -8 dBm
Tx/Rx Component FP(Tx)
Supply Current: 165 to 300 mA
Supply Voltage: 3.3 V
Temperature
Operating Temperature display: -10 to 70 Degree C
Storage Temperature: -40 to 85 Degree C
