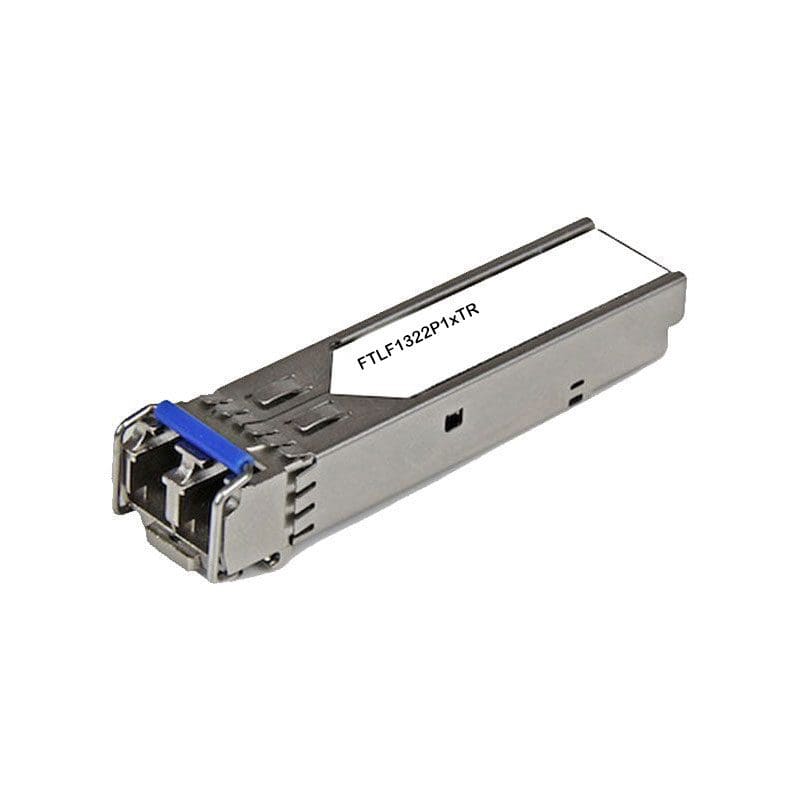

FTLF1322P1xTR Technical Specifications
Finisar Transceiver Module
Manufacturer: Finisar
Manufacturer FINISAR
Description OC-12 SR-1/STM I-4 or OC-12 IR-1/STM S-4.1 SFP Optical Transceiver
Applications SONET OC-12 IR-1 / SDH STM S-4.1, SONET OC-12 SR / SDH STM I-4, SONET OC-3 IR-1 / SDH STM S-1.1, SONET OC-3 SR / SDH STM I-1
Connections & Interface Connector: LC Connector
Interface 2-Wire
General Parameters
Data Rate 622 Mb/s Fast Ethernet
Wavelength 1260 to 1600 nm
Distance/Reach 15 km
Output Power -15 to -8 dBm
Fiber Modes Single Mode Fiber SMF
Form Factor SFP
Receiver Sensitivity -28 to -8 dBm
Power Dissipation 0.7 W (700 mW)
Tx Power -15 to -8 dBm
Tx/Rx Component FP(Tx)
Supply Current 165 to 300 mA
Supply Voltage 3.3 V
