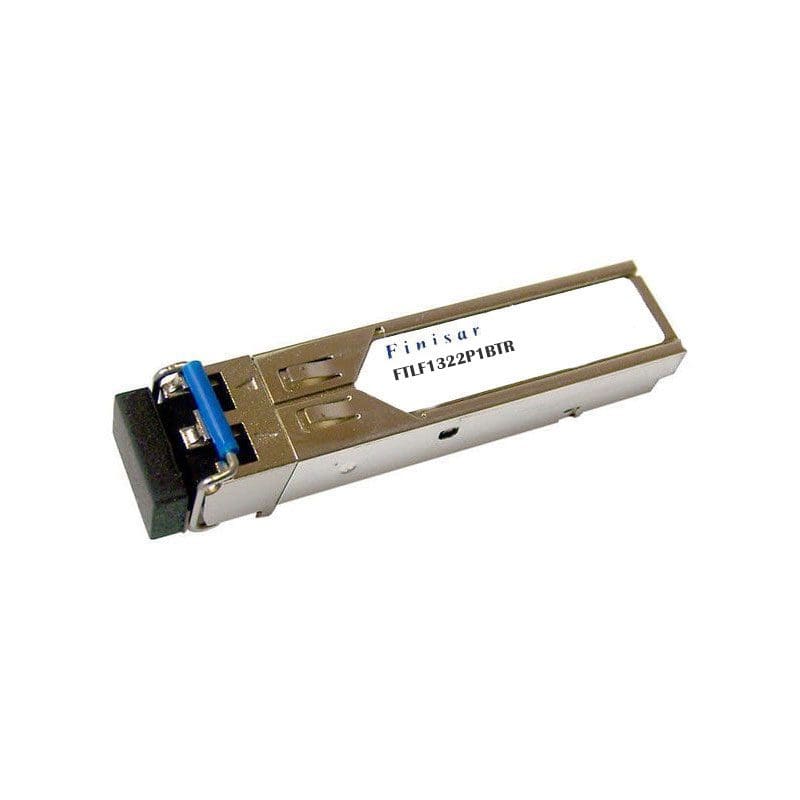

FTLF1322P1BTR Technical Specifications
Finisar TX/RX Optical Fiber 622Mbps 20-Pin
Manufacturer: Finisar
Up to 622 Mb/s bi-directional data links Fast Ethernet
Hot plug gable SFP footprint
Built-in digital diagnostic functions
Uncooled Fabry-Perot 1310nm laser transmitter
LC Duplex connector
Metal enclosure, for lower EMI
Single 3.3V power supply
Low power dissipation <700mW typical
Industrial operating temperature range: -40°C to 85°C
ECCN (US): EAR99
Part Status: Active
HTS: 8542.39.00.01
Automotive: Unknown
PPAP: Unknown
Type: TX/RX
Emitter Type: FP Laser
Fiber Mode: Single Mode
Connector Type: LC
Maximum Data Rate: 622Mbps
Peak Wavelength (nm): 1356(Max)/1600(Max)
Form Factor: SFP
Rise Time (ns): 0.3
Maximum Fall Time (ns): 0.3
Average Optical Output Power (dBm): -15 to -8
Minimum Operating Supply Voltage (V): 3.1
