FTLC8221SCNM Technical Specifications

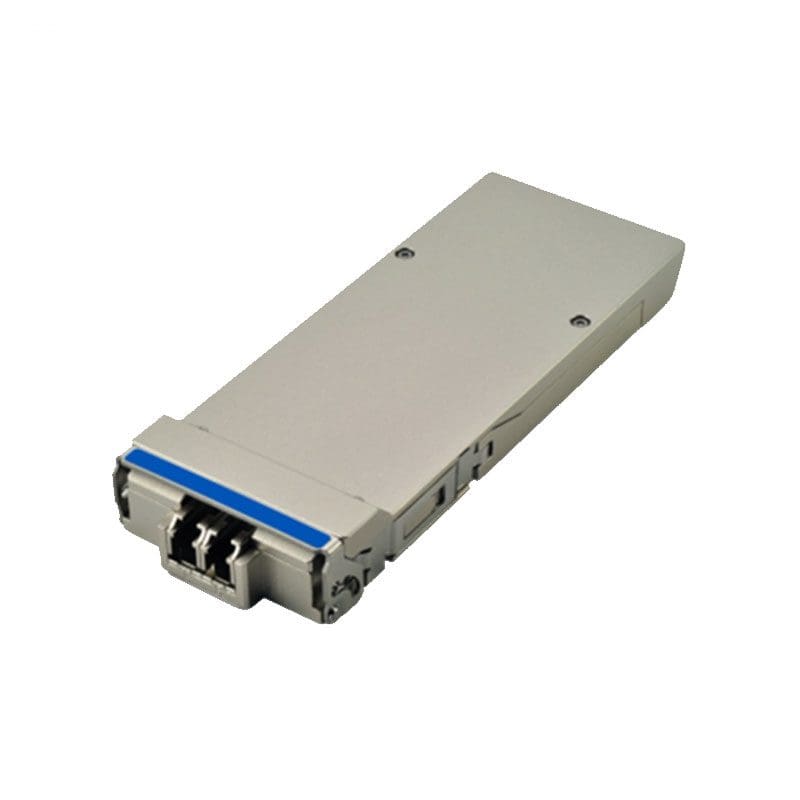

100GE CFP2 Optical Transceiver Module
Hot-pluggable CFP2 form factor
Supports 103.1Gb/s and 112Gb/s 100 Gigabit Ethernet
aggregate bit rates
Power dissipation < 4W
Commercial case temperature range
of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on
OM3 Multimode Fiber (MMF) and
150m on OM4 MMF
Uncooled 10x10Gb/s 850nm
transmitter
CPPI electrical interface
Single MPO24 receptacle
MDIO management interface
Tx/Rx optical power monitoring
functionality
