FTL4C1QL1L Technical Specifications

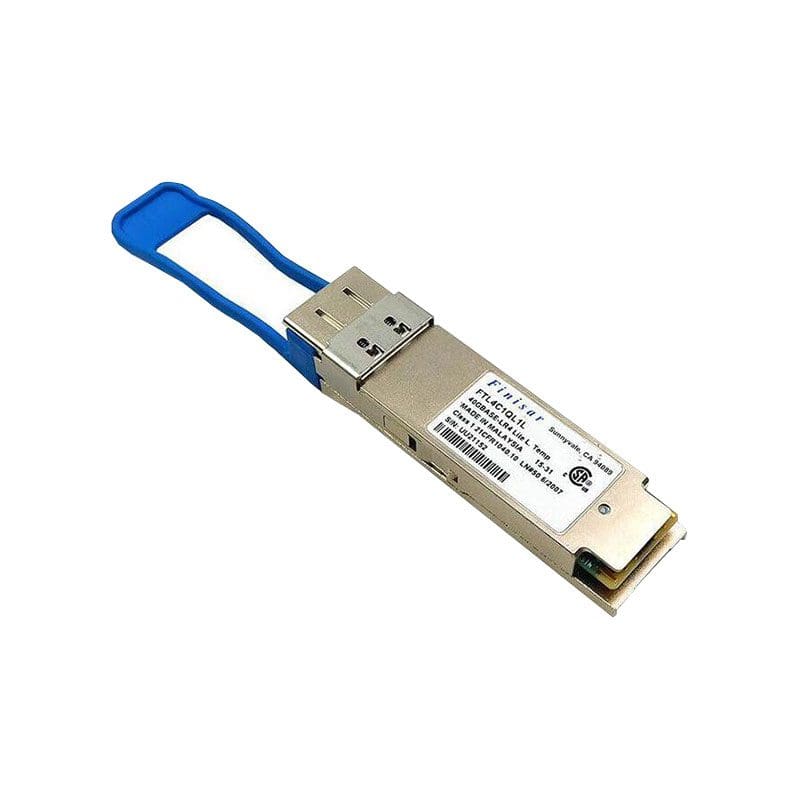

Finisar 40GBASE-LR4 QSFP+Optical Transceiver Module
Product Features:
Hot-pluggable: Qsfp+ Form Factor
Supports 41.2 Gb/s Aggregate Bit Rates
Rohs-6 Compliant
Max Distance: 2km
Wavelength: 1310nm
Lite Case Temperature Range: 15°c To 60°c
Single 3.3v Power Supply
Maximum Link Length Of 2km On Single Mode Fiber (smf)
Uncooled 4x10gb/s Cwdm Transmitter
Xlppi Electrical Interface
Duplex Lc Receptacles
Built-in Digital Diagnostic Functions, Including Tx/rx Power Monitoring.
Dimensions: 8.5 x 13.4 x 56.5mm
Weight: 42 grams
