FTL410QE2C Technical Specifications

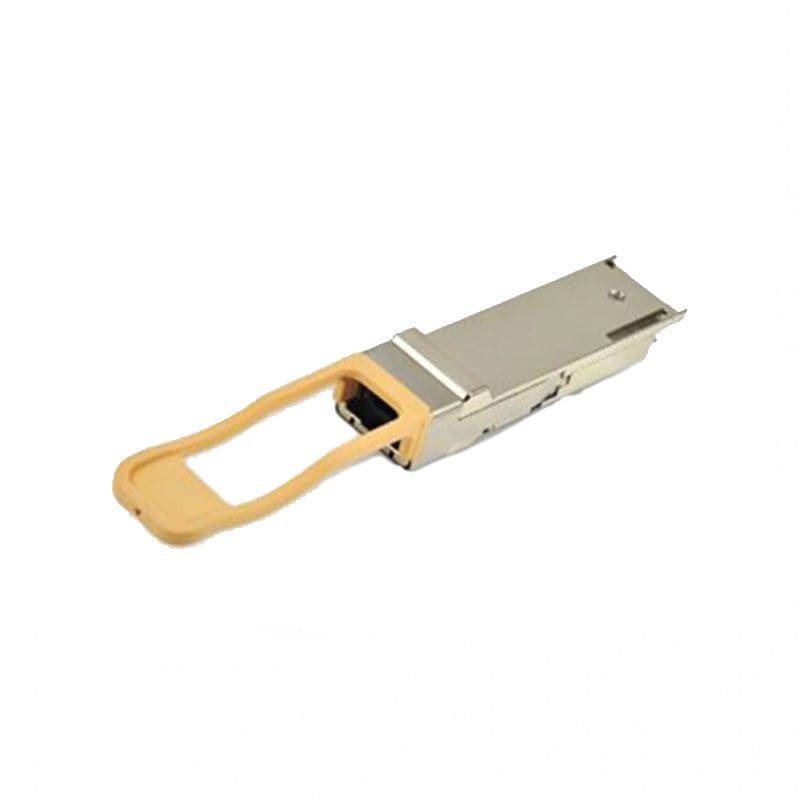

Finisar 40BASE-SR4 100m Optical Transceiver Module
Manufacturer: Finisar
Distance: 150 m
Data Rate (max): 41.2 Gb/s
Protocol: 10x Fibre Channel Compatible 40G Ethernet Compliant IB QDR Compatible
Low End Case Temperature (°C): 0
High End Case Temperature (°C): 70
Diagnostics: N/A
Transmitter: 4x VCSEL
Receiver: PIN
Voltage Supply: 3.3
Connector: MPO (MTP12)
Wavelength: 850nm Band
Four-channel full-duplex transceiver module
Hot-pluggable QSFP+ form factor
Maximum link length of 100m on OM3 Multimode Fiber (MMF) and 150m on OM4 MMF
Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
Unretimed XLPPI electrical interface
Maximum power dissipation < 1.5W
Reliable VCSEL array technology
Commercial temperature range 0°C to 70°C
Single 1×12 MPO receptacle
RoHS compliant
