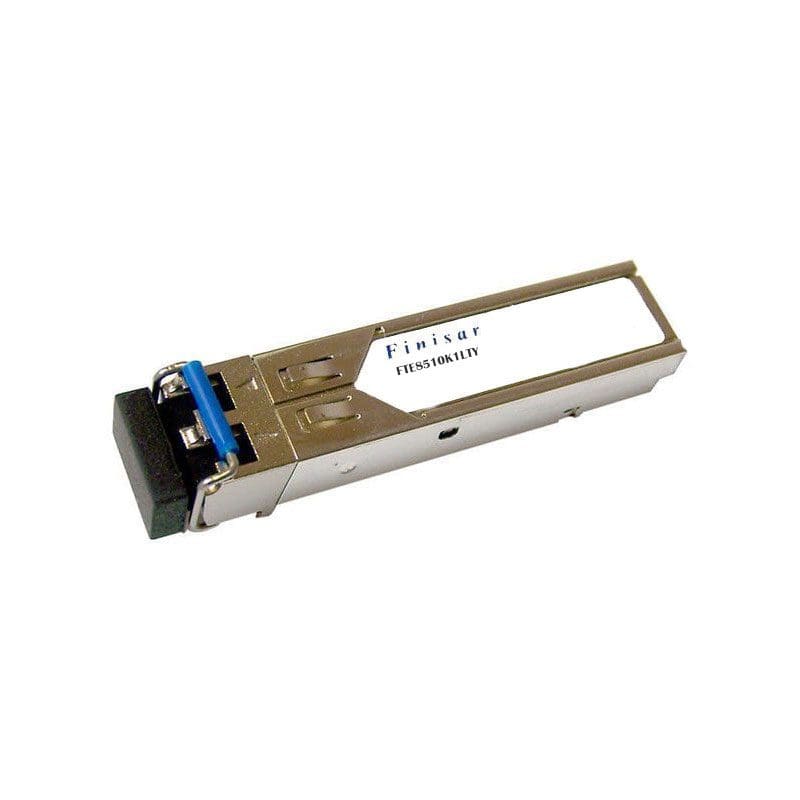

FTE8510K1LTY Technical Specifications
TX/RX Optical Fiber 10Gbps
Manufacturer: Finisar
Endurance, Short-Reach, 10 GbE, -40°C to 85°C, No Conformal Coating
Supports: 125 Mb/s to 10.3 Gb/s optical data links over multimode fibers 100 Gigabit Ethernet
Short-Reach: 850nm VCSEL Multimode or Long-Reach 1310nm DFB Single-mode available (SMF)
Multi-rate versions: available
Compact form-factor: Half the size of SFF transceivers
Board: mounted
Built-in: digital diagnostic functions
LC Duplex: optical connection
Single 3.3V power supply
Interoperable with standard SFP and SFP Plus optical transceivers
Extended operating temperature range: -40°C to 85°C
Extreme storage temperature range: -57°C to 100°C
Option for conformal coating for high reliability in corrosive environments
Qualified to applicable tests in MIL-STD-810G, MIL-STD-883 and GR-486-CORE
Interoperable with equivalent SFP and SFP+ transceivers
