FSP700PSASK-B204 Technical Specifications

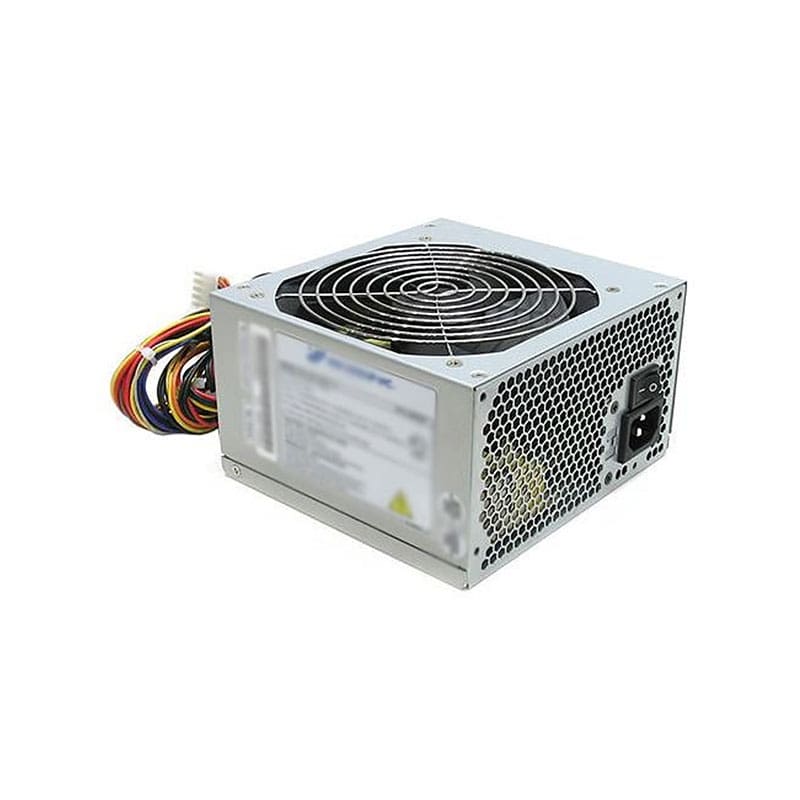

Sparkle 700W 80 Plus Bronze ATX 12V Switching Power Supply w/Active PFC
Manufacturer: Sparkle Power
Part Number: FSP700PSASK-B204
Dielectric Withstand: Primary frame ground 1800V AC for 2 second
Efficiency: Typical > 85%
Frequency: 47 ~ 63Hz
Hold-up Time: 16ms minimum at nominal input voltage
Input Current: Max 10A(RMS) @ 115Vac, 5A(RMS) @ 230Vac
Input Range: 90 ~ 264Vac (RMS), Full Range Input
Inrush Current: No damage at cold start
Leakage Current: Less than 3.5mA at 264Vac, 63Hz
Rise Time: Less than 20ms
Total Watts: 700W
