FSP500FDB-B204 Technical Specifications

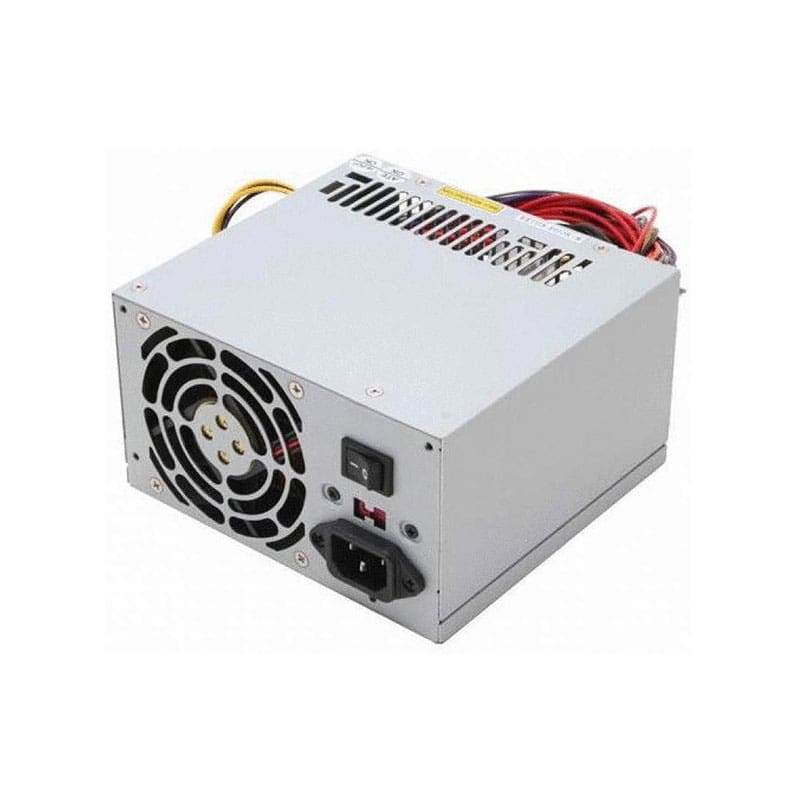

Sparkle Power 500W 80 PLUS Gold FLEX Switching Power Supply w/ Active PFC
Manufacturer: Sparkle Power
Part Number: FSP500FDB-B204
Model Name: FSP500-50FDB
Output Power: 500W Max
Output Voltage:
+3.3: 14.0A
+5V: 16.0A
+12V: 41.0A
+5Vsb: 3A
-12V: 0.3A
Input Voltage: 90-264VAC (47-63Hz)
Connectors:
1 x 20+4 Pin ATX
1 x 8-Pin ATX
2 x 6+2 PCIe
2 x Molex SATA
2 x SATA
Reliability: MTBF 100,000 hours
Environmental: Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 80°C
Efficiency: 80PLUS Bronze
Dimensions:
150 x 80 x 40mm
5.9″ x 3.15″ x 1.57″ (in inches)
Safety: CE, FCC, TUV, UL/cUL, EMC
