FS-224E Technical Specifications

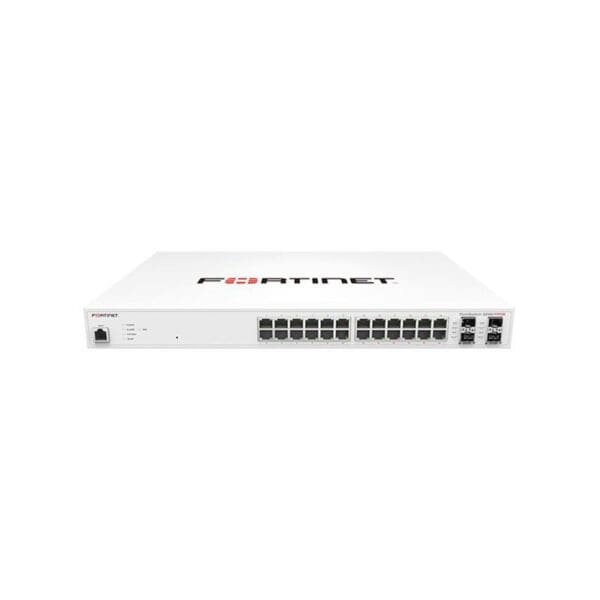

Fortinet FortiSwitch-224E L2 Switch 24XGE
Manufacturer :Fortinet
Brand :Fortinet
Product Line :Fortinet Forti Switch
Model :224E
Packaged Quantity :1
Performance
Performance :Packet transfer capability: 83 Mpps, Switching capacity: 48 Gbps, Latency: 1 µs
Capacity
Capacity :Host entries: 4000, MSTP instances: 15, Link aggregation groups: 8, Buffer capacity (MB): 1.5 MB, ACL entries: 512, Routing entries: 64, Virtual interfaces (VLANs): 4000, Link aggregation groups: 14
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :24
Advanced Switching :Layer 3
Routing Protocol :OSPFv2, RIP-2, VRRP
MAC Address Table Size :16000 entries
Jumbo Frame Support :Yes
Manageable :Yes
