Refurbished FPR4150-ASA-K9 Technical Specification

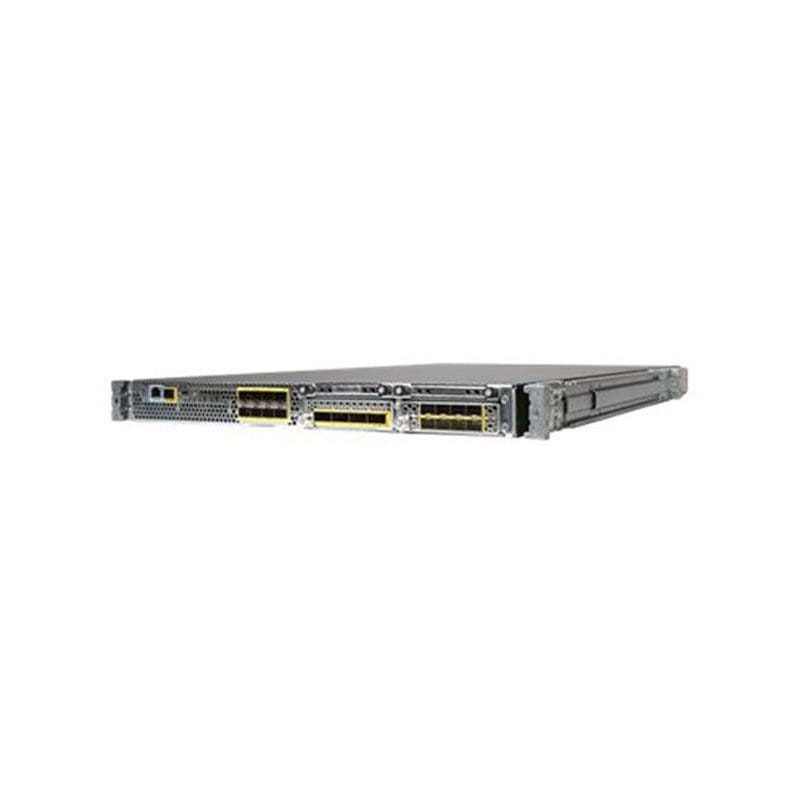

Cisco FirePOWER 4150 Firewall
General
Device Type Firewall
Height (Rack Units) 1U
Width 16.9 in
Depth 29.7 in
Height 1.7 in
Bundled with 2 x NetMod Bays
Processor / Memory / Storage
Hard Drive SSD 400 GB x 1
Networking
Form Factor Rack-mountable
Connectivity Technology Wired
Performance Maximum throughput FW + AVC2: 25 Gbps | Maximum throughput FW + AVC + NGIPS2: 20 Gbps | Firewall throughput: 70 Gbps | Multiprotocol firewall throughput: 50 Gbps
Capacity New connections per second: 800000 | Concurrent connections: | Virtual interfaces (VLANs): 1024 | Concurrent firewall connections: 30000000 | Latency: 3.5 | Security contexts 4: 250 | IPSec VPN peers: 20000
Features VLAN support, High Availability, URL filtering, DDos attack prevention, clustering technology, 6 fans, Application Visibility and Control (AVC)
Expansion / Connectivity
Expansion Slots 2 (total) / 2 (free) x expansion slot
Interfaces 8 x 10Gb Ethernet – SFP (mini-GBIC) | 4 x 40Gb Ethernet – SFP+ | 1 x 1000Base-T (management) – SFP (mini-GBIC) | 1 x serial – RJ-45 | 1 x USB 2.0 – Type A
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, TVCN 7317, CAN/CSA-C22.2 No. 60950-1
Power
Power Device Internal power supply – hot-plug
Max Supported Qty 2
Power Redundancy Yes
Voltage Required AC 120/230 V / DC -40 -60 V (50 – 60 Hz)
Power Provided 1100 Watt
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
