Refurbished FPR4140-NGFW-K9 Technical Specification

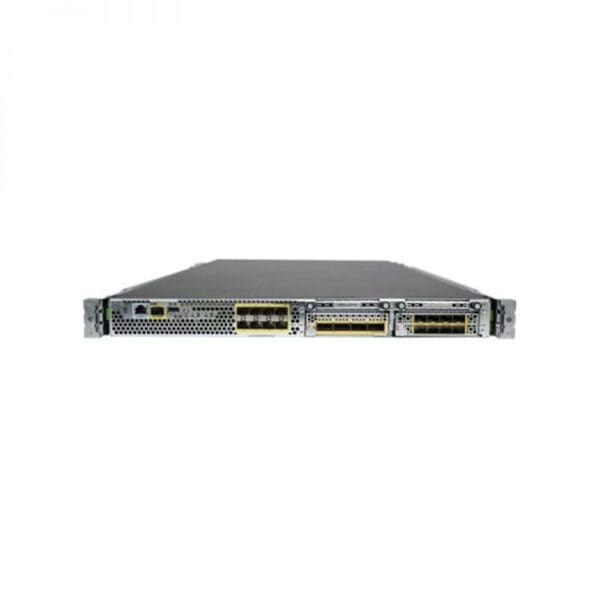

Cisco FirePOWER 4140 Firewall
General
Device Type Firewall
Height (Rack Units) 1U
Width 16.9 in
Depth 29.7 in
Height 1.7 in
Bundled with 2 x NetMod Bays
Processor / Memory / Storage
Hard Drive SSD 400 GB x 1
Networking
Form Factor Rack-mountable
Connectivity Technology Wired
Performance Maximum throughput FW + AVC2: 25 Gbps ¦ Maximum throughput FW + AVC + NGIPS2: 20 Gbps ¦ Firewall throughput: 60 Gbps ¦ Application control (AVC) or IPS sizing throughput: 10 Gbps ¦ Maximum inspection throughput: 20 Gbps ¦ Multiprotocol firewall throughput: 10 Gbps ¦ VPN throughput (IPSec): 8 Gbps
Capacity New connections per second: 350000 ¦ Concurrent connections: 14000000 ¦ Virtual interfaces (VLANs): 1024 ¦ Concurrent firewall connections: 25000000 ¦ Latency: 3.5 ¦ Security contexts 4: 250 ¦ IPSec VPN peers: 20000
Features VLAN support, High Availability, URL filtering, DDos attack prevention, clustering technology, 6 fans, Application Visibility and Control (AVC)
Expansion / Connectivity
Expansion Slots 2 (total) / 2 (free) x expansion slot
Interfaces 8 x 10Gb Ethernet – SFP (mini-GBIC) ¦ 4 x 40Gb Ethernet – SFP+ ¦ 1 x 1000Base-T (management) – SFP (mini-GBIC) ¦ 1 x serial – RJ-45 ¦ 1 x USB 2.0 – Type A
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, TVCN 7317, CAN/CSA-C22.2 No. 60950-1
Power
Power Device Internal power supply – hot-plug
Max Supported Qty 2
Power Redundancy Yes
Voltage Required AC 120/230 V / DC -40 -60 V (50 – 60 Hz)
Power Provided 1100 Watt
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – 90 days – response time: 10 days
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing
