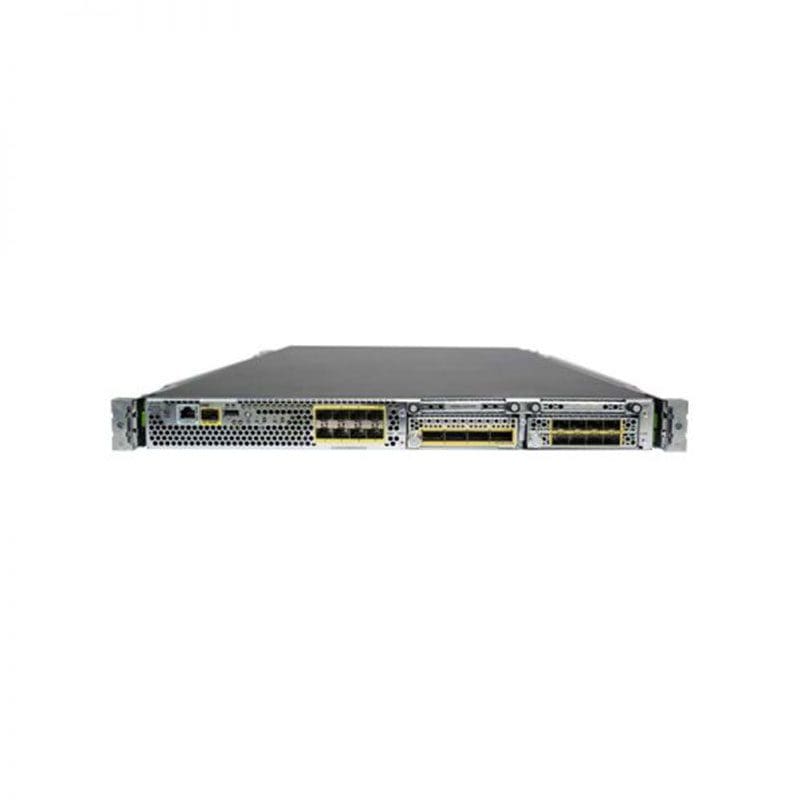

Refurbished FPR4120-NGFW-K9 Technical Specification
Cisco FirePOWER Security Appliance
General
Device Type Security appliance
Height (Rack Units) 1U
Width 16.9 in
Depth 29.7 in
Height 1.7 in
Bundled with 2 x NetMod Bays
Processor / Memory / Storage
RAM 128 GB DDR4 SDRAM
Hard Drive SSD 200 GB x 1
Networking
Form Factor Rack-mountable
Connectivity Technology Wired
Performance Firewall throughput: 40 Gbps ¦ Maximum throughput FW + AVC: 20 Gbps ¦ Maximum throughput FW + AVC + NGIPS: 15 Gbps ¦ Application control (AVC) and IPS throughput: 15 Gbps ¦ Application control (AVC) or IPS sizing throughput: 8 Gbps ¦ VPN throughput (IPSec): 10 Gbps
Capacity New connections per second: 120000 ¦ Maximum number of concurrent sessions: 11000000 ¦ Concurrent firewall connections: 15000000 ¦ Virtual interfaces (VLANs): 1024 ¦ Security contexts: 250
Status Indicators Power, system, active
Features Firewall protection, VLAN support, URL filtering, 6 fans
Expansion / Connectivity
Expansion Slots 2 (total) / 2 (free) x expansion slot
Interfaces 8 x 10GBase-X – SFP+ ¦ 1 x console – RJ-45 ¦ 1 x 1000Base-T (management) – RJ-45 ¦ 1 x USB 2.0 – Type A
Miscellaneous
Included Accessories Grounding kit, 2 mounting brackets, slide rail kit, 2 x power cords, console cable PC terminal adapter, 10 screws, 2 x cable management brackets, 2 x M3 screws
Power
Power Device Internal power supply
Max Supported Qty 2
Power Redundancy Yes
Voltage Required AC 120/230 V (50/60 Hz)
Power Provided 1100 Watt
