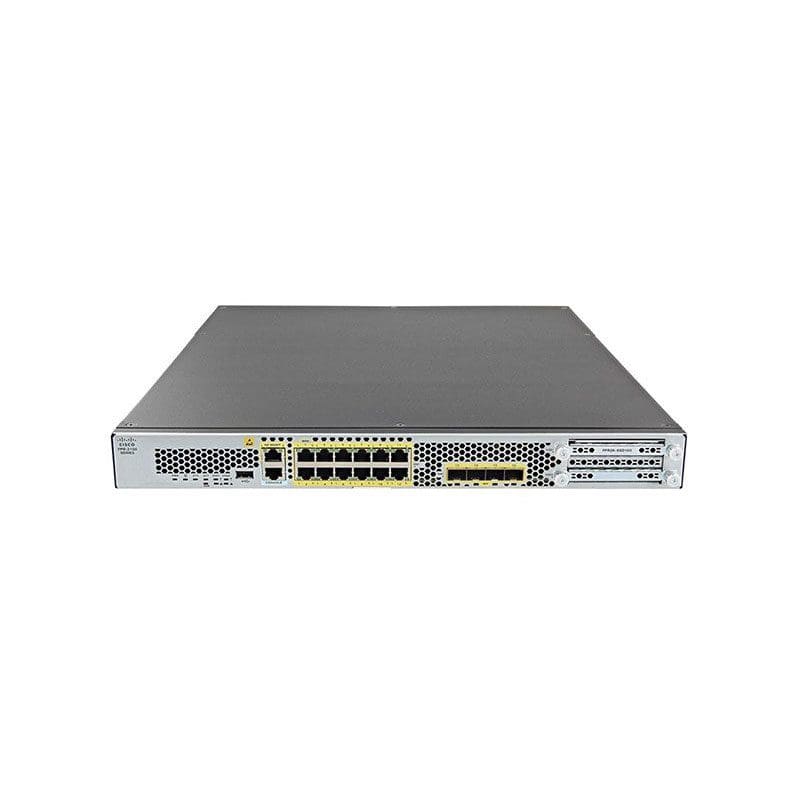

Refurbished FPR2140-ASA-K9 Technical Specification
Cisco FirePOWER ASA Security Appliance
General
Device Type Security appliance
Height (Rack Units) 1U
Width 16.9 in
Depth 19.8 in
Height 1.7 in
Bundled with NetMod Bay
Processor / Memory / Storage
Hard Drive SSD 200 GB x 1
Networking
Form Factor Rack-mountable
Connectivity Technology Wired
Performance Firewall throughput: 20 Gbps ¦ Maximum throughput FW + AVC: 8.5 Gbps ¦ Maximum throughput FW + AVC + NGIPS: 8.5 Gbps ¦ IPSec VPN throughput (1024B TCP w/Fastpath): 3 Gbps ¦ Multiprotocol firewall throughput: 10 Gbps ¦ IPsec VPN throughput (450B UDP L2L test): 2 Gbps
Capacity New connections per second with AVC: 40000 ¦ Concurrent sessions with AVC: 3000000 ¦ Virtual interfaces (VLANs): 1024 ¦ Concurrent firewall connections: 3000000 ¦ VPN peers: 10000 ¦ Security contexts: 2 (maximum 40) ¦ New connections per second: 75000
Features VLAN support, URL filtering, DDos attack prevention, clustering technology, 4 fans, Application Visibility and Control (AVC)
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x expansion slot
Interfaces 12 x 1000Base-T – RJ-45 ¦ 4 x 10GBase-X – SFP+ ¦ 1 x 1000Base-T (management) – RJ-45 ¦ 1 x serial – RJ-45 ¦ 1 x USB 2.0 – Type A
Miscellaneous
Included Accessories Slide rail kit
Power
Power Device Internal power supply – hot-plug
Max Supported Qty 2
Power Redundancy Optional
Software / System Requirements
Software Included Cisco ASA 9.8
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85% (non-condensing)
