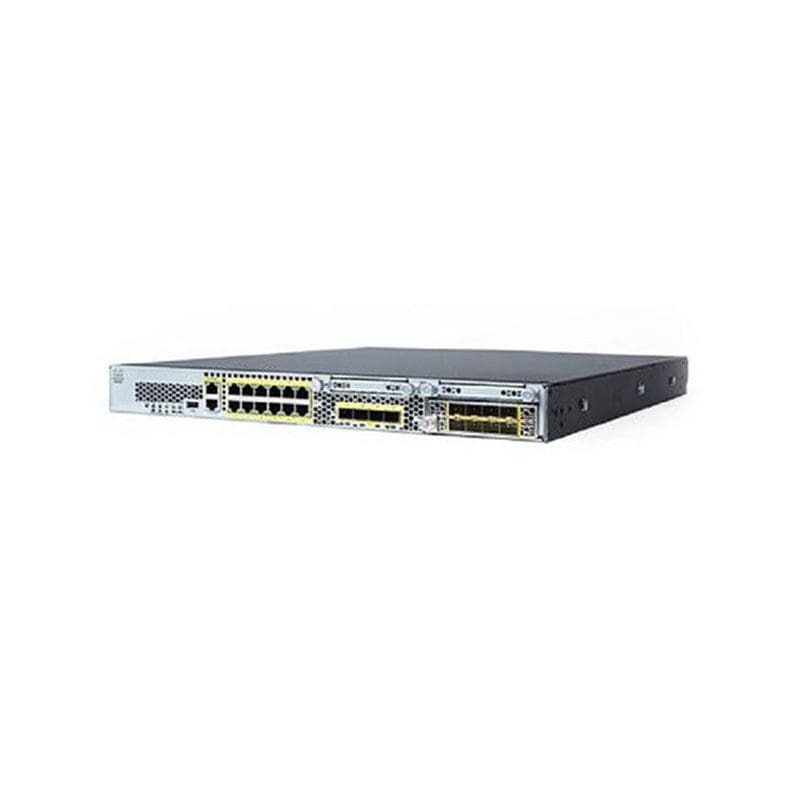

Refurbished FPR2130-ASA-K9 Technical Specification
Cisco FirePOWER ASA Security Appliance
Manufacturer :Cisco Systems
Brand :Cisco
Product Line :Cisco FirePOWER
Model :2130 ASA
Bundled with :NetMod Bay
Packaged Quantity :1
Hard Drive
Type :SSD
Installed Qty :1
Capacity :200 GB
Performance
Performance :Firewall throughput: 20 Gbps, IPSec VPN throughput (1024B TCP w/Fastpath): 1.5 Gbps, IPsec VPN throughput (450B UDP L2L test): 1 Gbps, Maximum throughput FW + AVC + NGIPS: 4.75 Gbps, Maximum throughput FW + AVC: 4.75 Gbps, Multiprotocol firewall throughput: 5 Gbps
Capacity
Capacity :Concurrent firewall connections: 2000000, Concurrent sessions with AVC: 2000000, New connections per second with AVC: 24000, New connections per second: 40000, Security contexts: 2 (maximum 30), Virtual interfaces (VLANs): 750, VPN peers: 7500
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Features :4 fans, Application Visibility and Control (AVC), Clustering technology, DDos attack prevention, URL filtering, VLAN support
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x serial – RJ-45, 1 x USB 2.0 – Type A, 12 x 1000Base-T – RJ-45, 4 x 10GBase-X – SFP+
Software
Type :Cisco ASA 9.8
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Max Supported Qty :2
Miscellaneous
Included Accessories :Slide rail kit
Height (Rack Units) :1
Dimensions & Weight
Width :16.9 inch
Depth :19.8 inch
Height :1.7 inch
