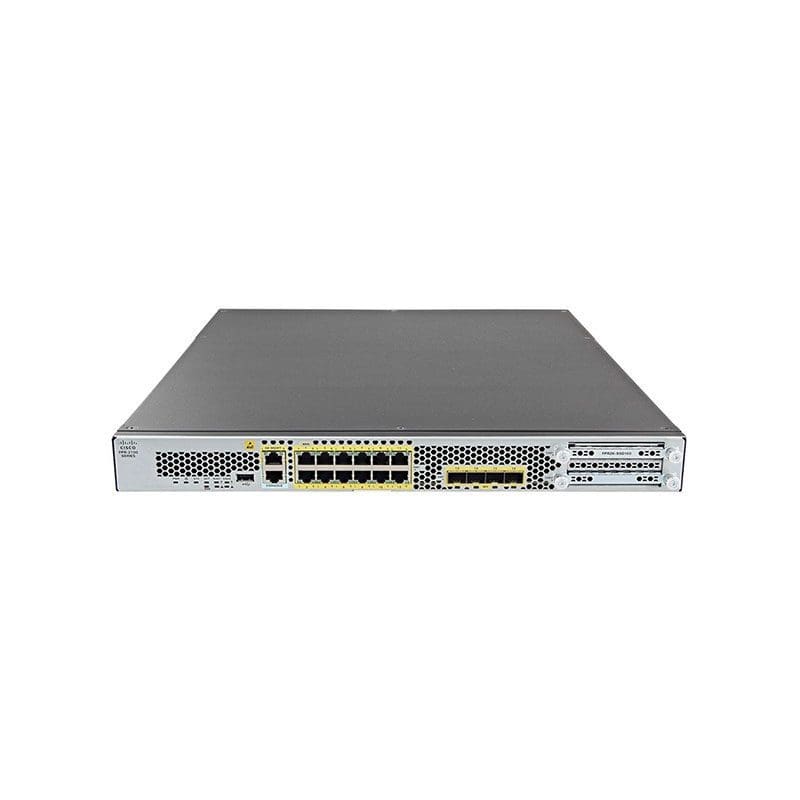

Refurbished FPR2120-ASA-K9 Technical Specification
Cisco FirePOWER ASA Security Appliance
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco FirePOWER
Model :2120 ASA
Packaged Quantity :1
Hard Drive
Type :SSD
Installed Qty :1
Capacity :100 GB
Performance
Performance :Firewall throughput: 6 Gbps, IPSec VPN throughput (1024B TCP w/Fastpath): 1 Gbps, IPsec VPN throughput (450B UDP L2L test): 700 Mbps, Maximum throughput FW + AVC + NGIPS: 3 Gbps, Maximum throughput FW + AVC: 3 Gbps, Multiprotocol firewall throughput: 3 Gbps
Capacity
Capacity :Concurrent firewall connections: 1500000, Concurrent sessions with AVC: 1200000, New connections per second with AVC: 16000, New connections per second: 28000, Security contexts: 2 (maximum 25), Virtual interfaces (VLANs): 600, VPN peers: 3500
Networking
Type :Security appliance
Form Factor :Rack-mountable
Connectivity Technology :Wired
Status Indicators :Fan, Internet, Power, SSD activity, System
Features :4 fans, Application Visibility and Control (AVC), Auto duplex mode, Auto-uplink (auto MDI/MDI-X), Clustering technology, DDos attack prevention, URL filtering, VLAN support
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x serial – RJ-45, 1 x USB 2.0 – Type A, 12 x 1000Base-T – RJ-45, 4 x 1000Base-X
Software
Type :Cisco ASA 9.8
Power Device
Type :Internal power supply
Installed Qty :1
Max Supported Qty :1
Power Provided :250 watt
Nominal Voltage :AC 100 – 240 V
Frequency Required :50 – 60 hertz
