FPR1150-ASA-K9 Technical Specifications

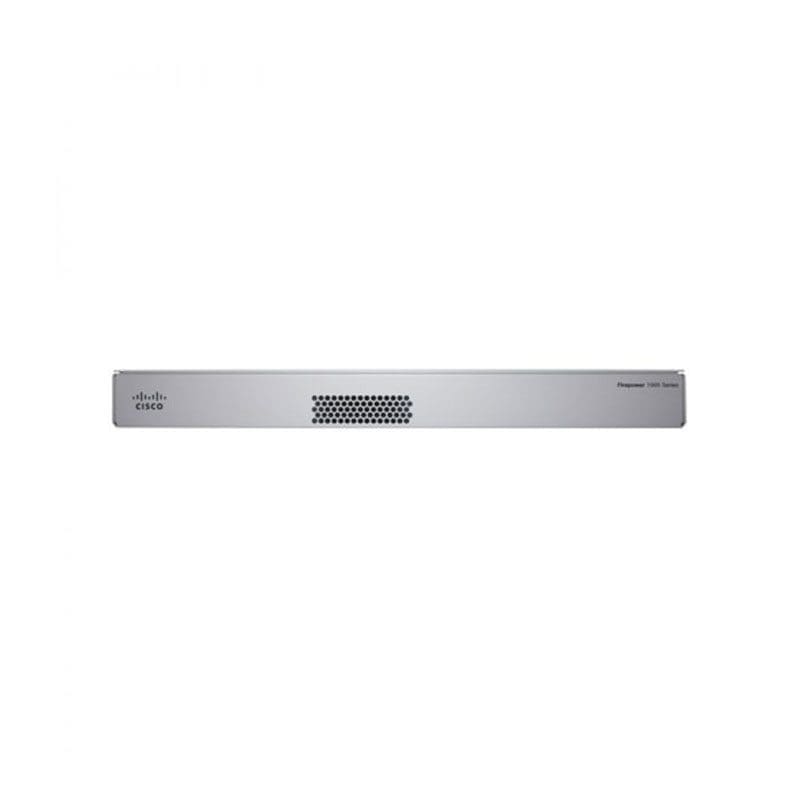

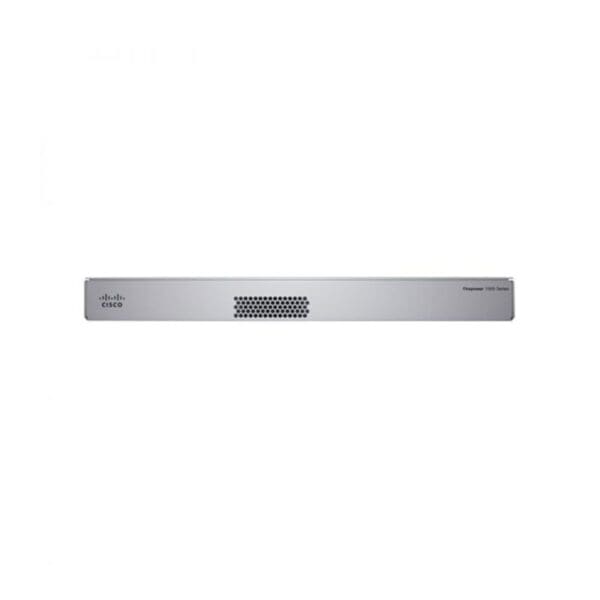

Cisco FirePOWER 1150 ASA Firewall
Manufacturer : Cisco Systems
Brand : Cisco
Product Line : Cisco FirePOWER
Model : 1150 ASA
Packaged Quantity
1
Hard Drive
Installed Qty
1
Capacity
200 GB
Performance
Performance
Firewall throughput: 7.5 Gbps, IPsec VPN throughput (450B UDP L2L test): 1.7 Gbps, Multiprotocol firewall throughput: 4.5 Gbps
Capacity
Capacity
Concurrent firewall connections: 600000, New connections per second: 150000, VPN peers: 800
Networking
Type
Firewall
Form Factor
Rack-mountable
Connectivity Technology
Wired
Features
1 fan
Interface Provided
Interfaces
1 x 1000Base-T (management) – RJ-45, 1 x serial – RJ-45, 1 x USB 3.0 – Type A, 2 x 1Gb Ethernet/10Gb Ethernet – SFP+, 2 x Ethernet 1000 – SFP (mini-GBIC), 8 x – RJ-45
Software
Type
Cisco ASA 9.13.1
Power Device
Type
Internal power supply
Nominal Voltage
AC 120/230 V
Frequency Required
50/60 hertz
Miscellaneous
Color Category
Gray
Included Accessories
Mounting brackets
Height (Rack Units)
1
Compliant Standards
AS/NZS 60950-1, AS/NZS CISPR22 Class A, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2004/108/EC, Directive 2006/108/EC, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN55024, FCC CFR47 Part 15 A, GB 4943, ICES-003 Class A, IEC 60950-1, KN22 Class A, KN24, TCVN 7189, TVCN 7317, UL 60950-1, VCCI Class A
Dimensions & Weight
Width
17.2 inch
Depth
10.6 inch
Height
1.7 inch
Weight
8 lbs
Service & Support
Type
90-day warranty
Service & Support Details
Service & Support
Limited warranty – advance hardware replacement – 90 days – response time: 10 days
Environmental Parameters
Min Operating Temperature
32 degree Fahrenheit
Max Operating Temperature
104 degree Fahrenheit
Humidity Range Operating
90% (non-condensing)
