FG201EUSG-BDL-980-60 Technical Specifications

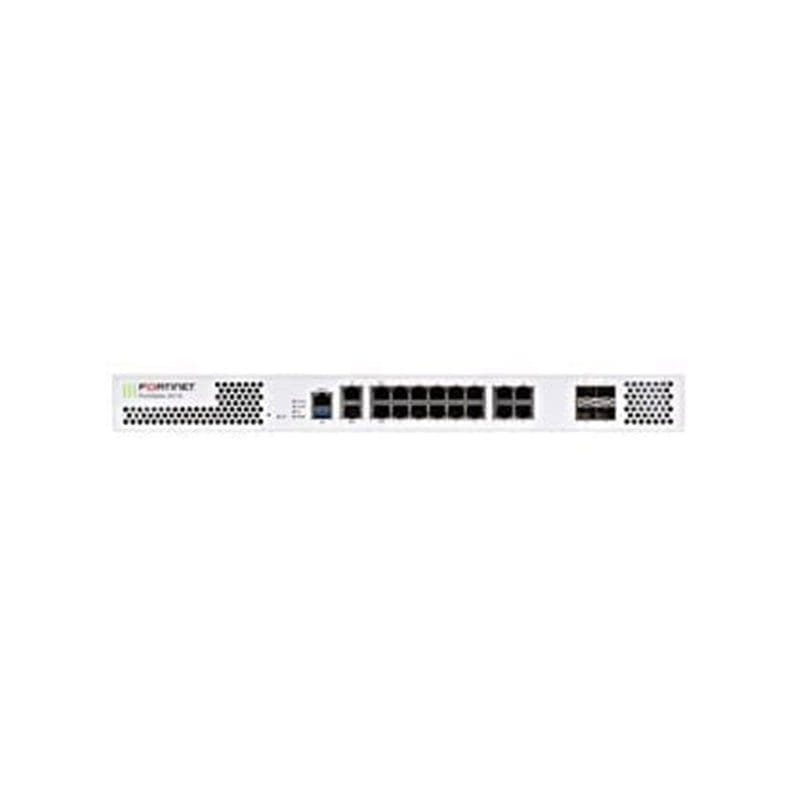

Fortinet FortiGate 201E Network Security/Firewall Appliance
Manufacturer Fortinet, Inc
Manufacturer Part Number FG201EUSG-BDL-980-60
Brand Name Fortinet
Product Line FortiGate
Product Series 200E
Product Model 201E
Product Name FortiGate 201E Network Security/Firewall Appliance
Product Type Network Security/Firewall Appliance
Technical Information−
Technical Information
Firewall Protection Supported Secure IPsec VPN Connectivity, Application Control, Threat Protection, Antivirus, Advanced Threat Intelligence, SSL Offloading, Anti-spam, Web Content Filtering, Malware Protection, Intrusion Prevention
Encryption Standard AES (128-bit), AES (256-bit), SHA-256
Interfaces/Ports
Total Number of Ports 18
USB Yes
Number of Network (RJ-45) Ports 17
Network & Communication
Ethernet Technology Gigabit Ethernet
Network Standard 1000Base-T, 1000Base-X
I/O Expansions
Number of Total Expansion Slots 4
Expansion Slot Type SFP
Number of SFP Slots 4
Management & Protocols
Manageable Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.8″
Width 17″
Depth 11.9″
Weight (Approximate) 12.12 lb
