FG-7030E Technical Specifications

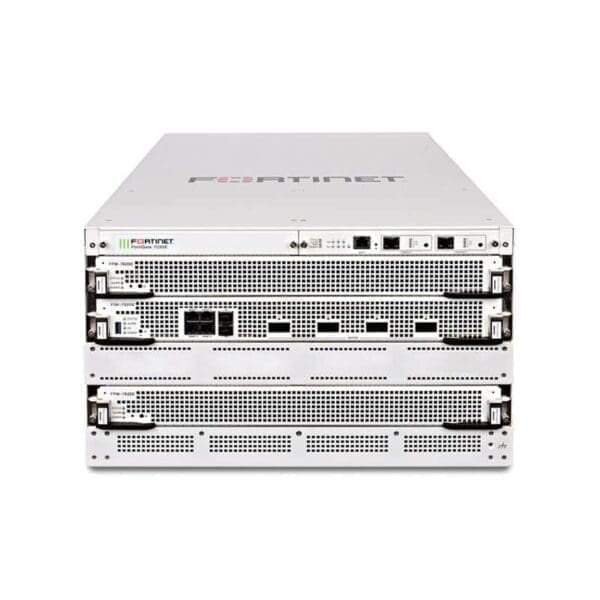

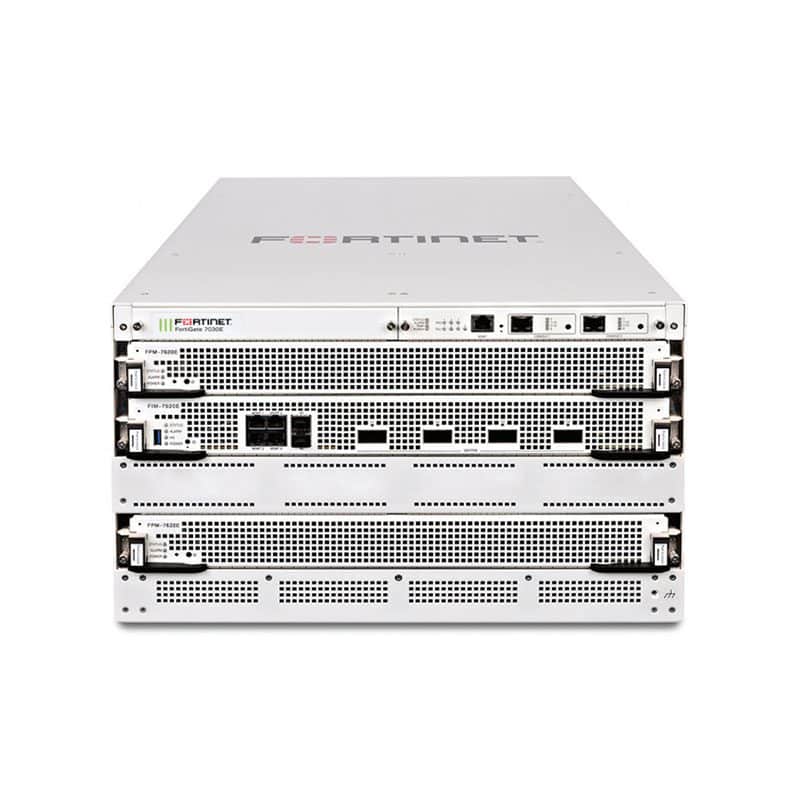

Fortinet FortiGate 7030E Network Security/Firewall Appliance
Manufacturer Fortinet, Inc
Manufacturer Part Number FG-7030E
Brand Name Fortinet
Product Line FortiGate
Product Series 7000
Product Model 7030E
Product Name FortiGate 7030E Network Security/Firewall Appliance
Product Type Network Security/Firewall Appliance
Technical Information−
Technical Information
Firewall Protection Supported Malware Protection, Intrusion Prevention, Application Control, Threat Protection, Zero Day Event
Wireless Specifications
Wireless LAN No
I/O Expansions
Number of Total Expansion Slots 3
Management & Protocols
Manageable Yes
Physical Characteristics
Compatible Rack Unit 6U
Form Factor Rack-mountable
Height 10.4″
Width 17.3″
Depth 25.6″
Weight (Approximate) 134.90 lb
Miscellaneous
Package Contents
FortiGate 7030E Network Security/Firewall Appliance
2 x FPM-7620E Processor Modules
1 x FIM-7920E Module with 4 x 100 GE QSFP28 Slots
1 x Manager Module
3 x Hot Swappable Redundant PSU
Warranty
Limited Warranty 1 Year
