FG-101E-USG Technical Specifications

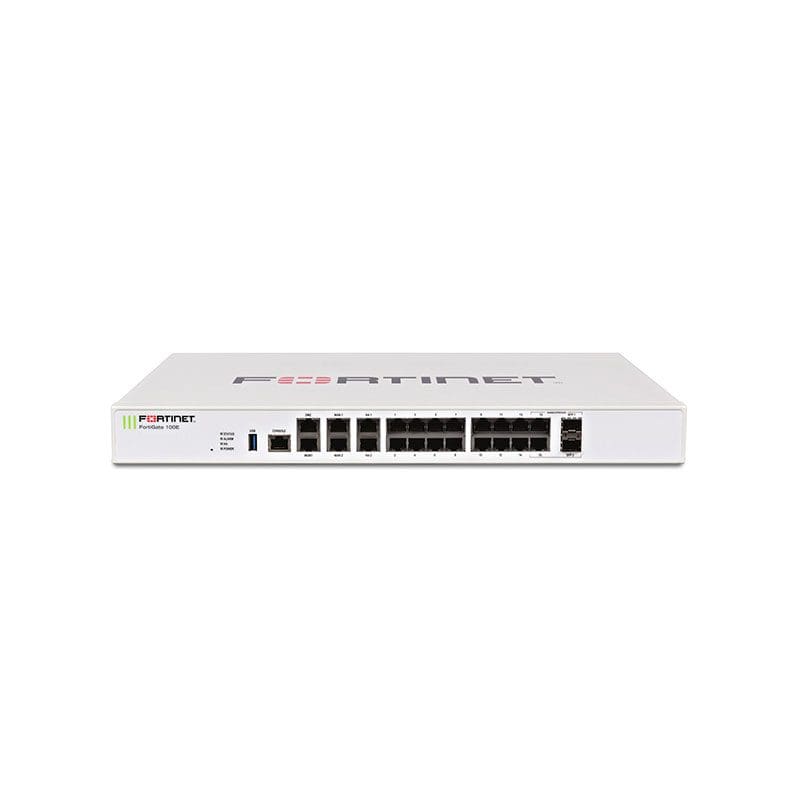

Fortinet FortiGate 101E Network Security/Firewall Appliance
Manufacturer Fortinet, Inc
Manufacturer Part Number FG-101E-USG
Brand Name Fortinet
Product Line FortiGate
Product Series 100E
Product Model 101E
Product Name FortiGate 101E Network Security/Firewall Appliance
Product Type Network Security/Firewall Appliance
Technical Information−
Technical Information
Firewall Protection Supported Application Control, Malware Protection, Threat Protection, Secure IPsec VPN Connectivity, Gateway Antivirus, ICSA Certified OS, Intrusion Prevention, Anti-spam, Antivirus, Web Content Filtering, Cyber Assault Protection, SSL Offloading, Advanced Threat Intelligence, Outbreak Prevention
Encryption Standard AES (256-bit), SHA-256
Interfaces/Ports
Total Number of Ports 18
USB Yes
Number of Network (RJ-45) Ports 18
Network & Communication
Ethernet Technology Gigabit Ethernet
Network Standard 1000Base-X, 1000Base-T
Wireless Specifications
Wireless LAN No
I/O Expansions
Number of Total Expansion Slots 2
Expansion Slot Type SFP (mini-GBIC)
Number of SFP Slots 2
Management & Protocols
Manageable Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.8″
Width 17″
Depth 10″
Weight (Approximate) 7.28 lb
