FG-100F-LENC Technical Specifications

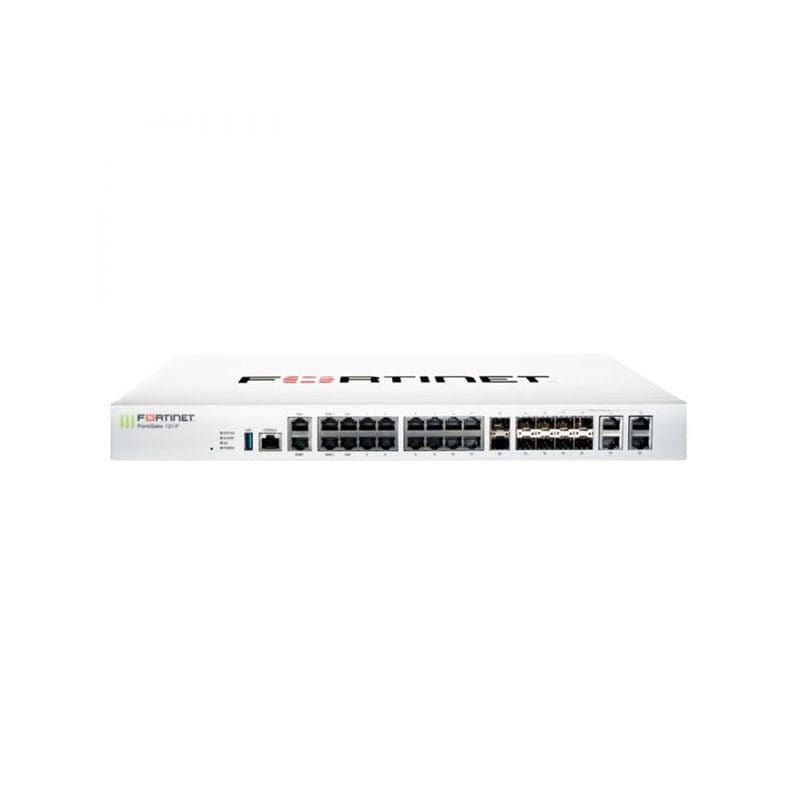

Fortinet FortiGate 100F Network Security/Firewall Appliance
Manufacturer Fortinet, Inc
Manufacturer Part Number FG-100F-LENC
Brand Name Fortinet
Product Line FortiGate
Product Series 100F
Product Name FortiGate 100F Network Security/Firewall Appliance
Product Type Network Security/Firewall Appliance
Technical Information−
Technical Information
Firewall Protection Supported Threat Protection, SSL Encrypted Traffic Protection, ICSA Certified OS, Secure IPsec VPN Connectivity, Application Control, Antivirus
Encryption Standard AES (256-bit), SHA-256
Number of VPN Supported 500
Interfaces/Ports
Total Number of Ports 22
USB Yes
Number of Network (RJ-45) Ports 21
Network & Communication
Ethernet Technology 10 Gigabit Ethernet
Network Standard 10GBase-X, 1000Base-T, 1000Base-X
Wireless Specifications
Wireless LAN No
I/O Expansions
Number of Total Expansion Slots 10
Expansion Slot Type SFP+, SFP (mini-GBIC)
Number of SFP Slots 8
Number of SFP+ Slots 2
Management & Protocols
Manageable Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7″
Width 17″
Depth 10″
Weight (Approximate) 7.25 lb
