FG-100E-BDL-USG Technical Specifications

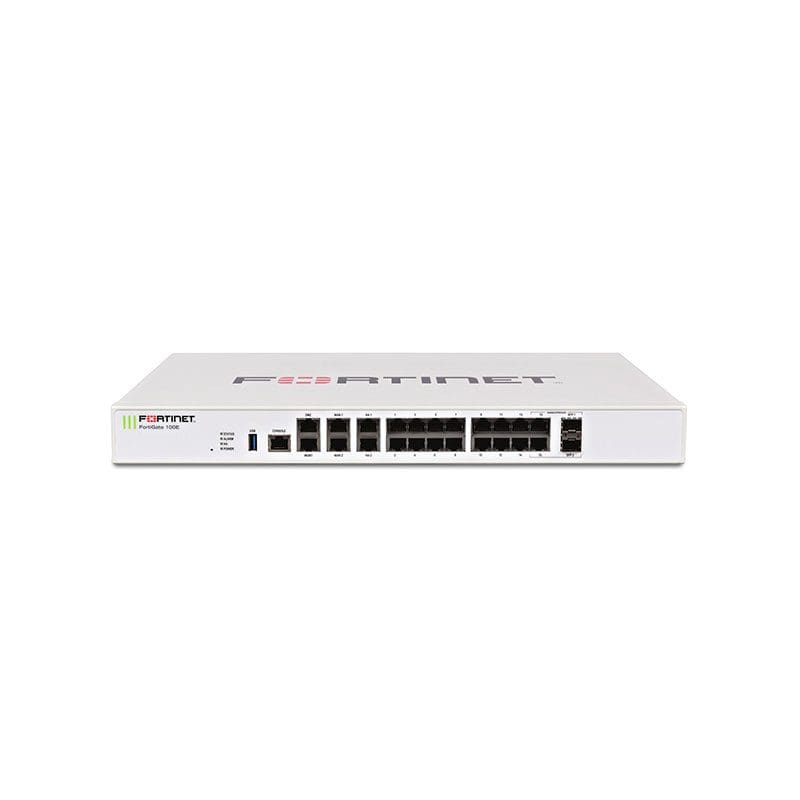

Fortinet FortiGate 100E Network Security/Firewall Appliance
Manufacturer Fortinet, Inc
Manufacturer Part Number FG-100E-BDL-USG
Brand Name Fortinet
Product Line FortiGate
Product Series 100E
Product Name FortiGate 100E Network Security/Firewall Appliance
Product Type Network Security/Firewall Appliance
Technical Information−
Technical Information
Firewall Protection Supported Threat Protection, Application Control, Malware Protection
Encryption Standard AES (256-bit), SHA-1
Interfaces/Ports
Total Number of Ports 20
USB Yes
PoE (RJ-45) Port No
Number of Network (RJ-45) Ports 20
Network & Communication
Ethernet Technology Gigabit Ethernet
Network Standard 1000Base-X, 1000Base-T
I/O Expansions
Number of Total Expansion Slots 2
Expansion Slot Type SFP
Number of SFP Slots 2
Management & Protocols
Manageable Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7″
Width 17″
Depth 10″
Weight (Approximate) 7.28 lb
