FD-P-IA2G-550 Technical Specifications

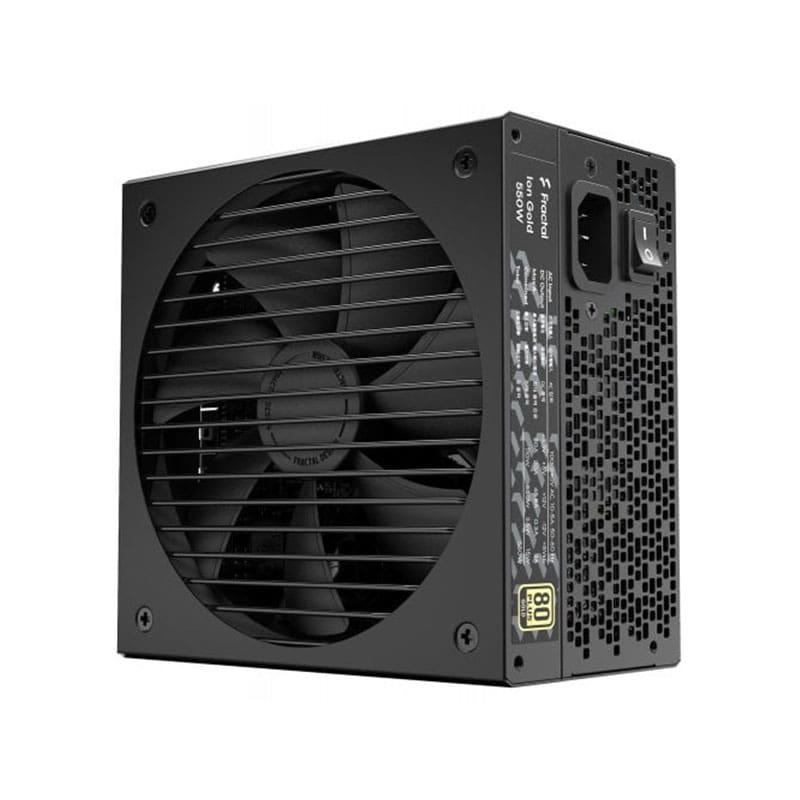

Fractal Design Ion Gold 550W 80 Plus Gold Certified Fully Modular Black Desktop Power Supply
Brand: Fractal Design
Series: Ion Gold
Model: FD-P-IA2G-550-US
Type: ATX12V 2.52 / EPS12V 2.92
Maximum Power: 550 W
Fans: 140 mm LLS bearing Fractal Design Dynamic series fan
PFC: Active
Main Connector: 20+4Pin
+12V Rails: Single
PCI-Express Connector: 2 x 6+2-Pin
SATA Power Connector: 6
Max PSU Length: 150 mm
Modular: Full Modular
Energy-Efficient: 80 PLUS GOLD Certified
Over Voltage Protection : Yes
Overload Protection: Yes
Input Voltage: 100 – 240 V
Input Frequency: Range 50/60 Hz
Input Current: 10/5 A
Dimensions: 3.39″ x 5.91″ x 5.91″
Weight: 4.54 lbs.
