FAP-U223EV-B Technical Specifications

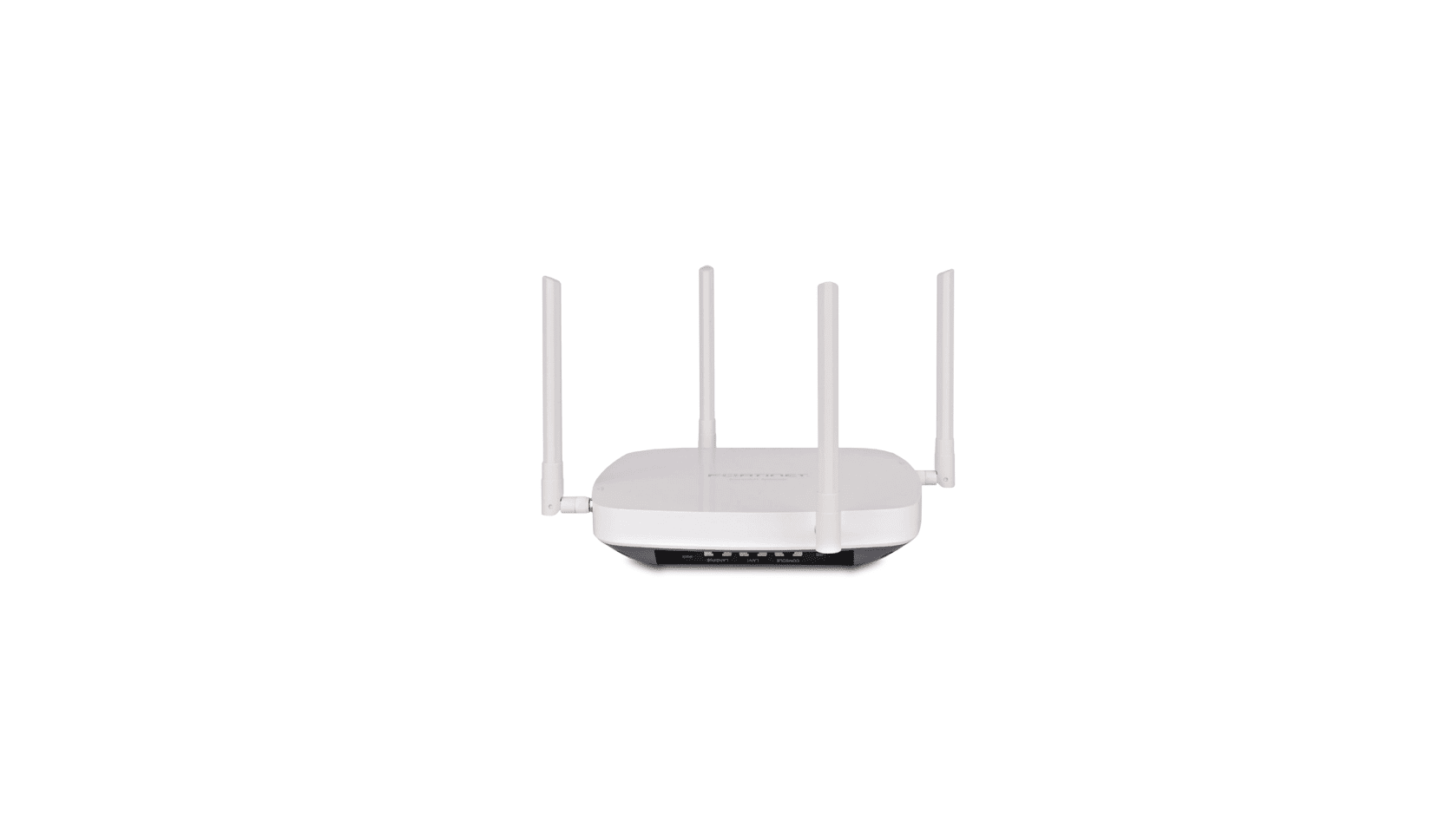

Fortinet FortiAP-U U223EV IEEE 802.11ac 1.14 Gbit/s Wireless Access Point
Manufacturer: Fortinet, Inc
Manufacturer Part Number: FAP-U223EV-B
Brand Name: Fortinet
Product Line: FortiAP-U
Product Model: U223EV
Product Name: FortiAP-U U223EV Wireless Access Point
Product Type: Wireless Access Point
Technical Information−
Technical Information
Wireless LAN: Standard IEEE 802.11ac
Frequency Band: 2.40 GHz, 5 GHz
Total Number of Antennas: 5
Number of Internal Antennas: 1
Number of External Antennas: 4
Wireless Transmission Speed: 1.14 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network: (RJ-45) Ports 1
PoE PD Port: Yes
USB: Yes
Physical Characteristics
Form Factor: Wall Mountable, Ceiling Mountable, Rail-mountable
Height: 1.6″
Width: 7.9″
Depth: 7.9″
Weight (Approximate): 1.32 lb
Miscellaneous
Package Contents
FortiAP-U U223EV Wireless Access Point
Mount Kits For Ceiling: T-Rail And Wall
