FAP-S223E-B Technical Specifications

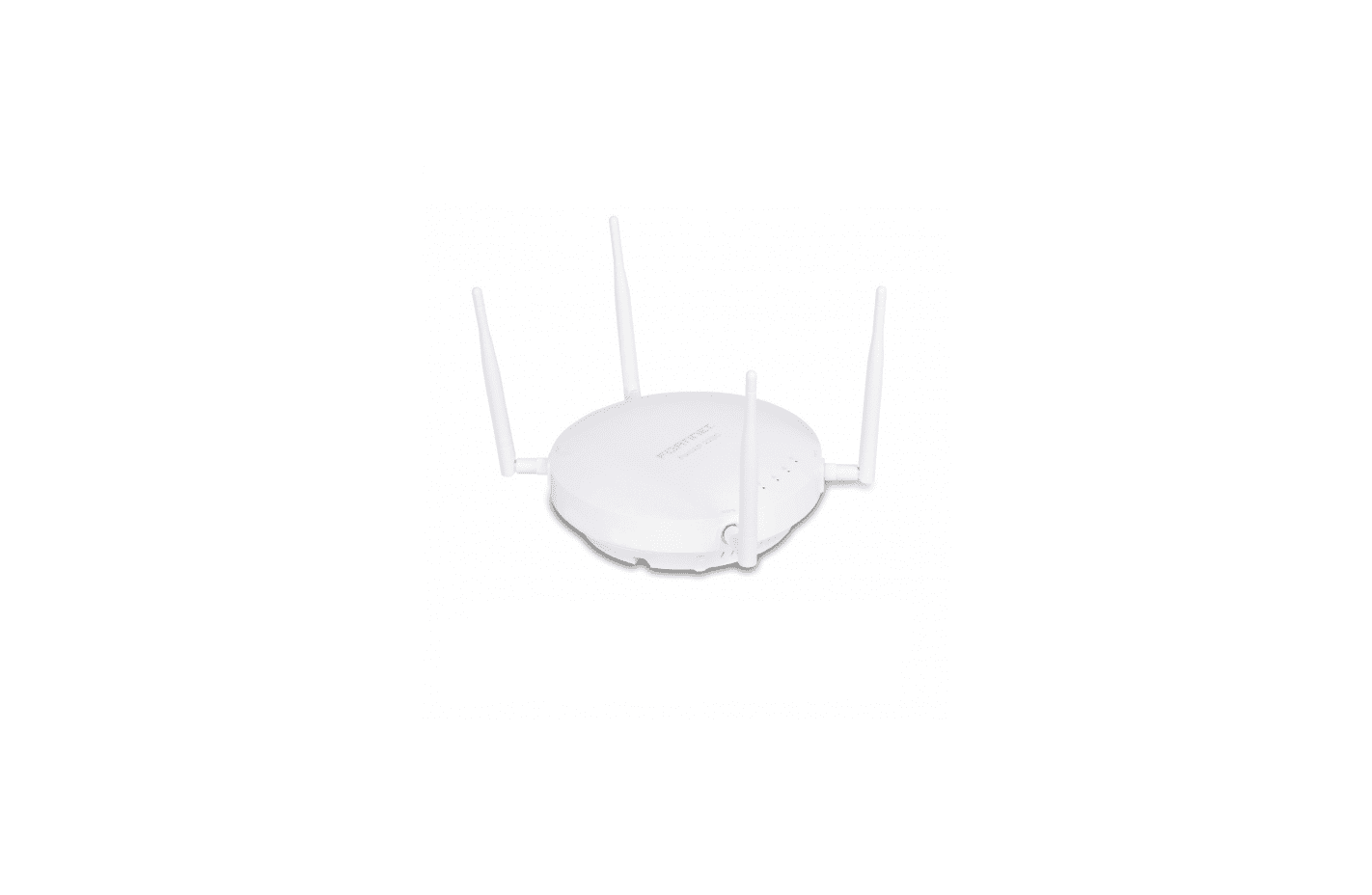

Fortinet FortiAP S223E IEEE 802.11ac 1.14 Gbit/s Wireless Access Point
Manufacturer: Fortinet, Inc
Brand Name: Fortinet
Product Line: FortiAP
Product Model: S223E
Product Name: FortiAP S223E Wireless Access Point
Product Type: Wireless Access Point
Technical Information−
Technical Information
Wireless LAN: Standard IEEE 802.11ac
Frequency Band: 5 GHz, 2.40 GHz
Total Number of Antennas: 5
Number of Internal Antennas: 1
Number of External Antennas: 4
Wireless Transmission Speed: 1.14 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network: (RJ-45) Ports 2
PoE PD Port: Yes
USB: Yes
Management Port: Yes
Physical Characteristics
Form Factor: Ceiling Mountable, Wall Mountable, Rail-mountable
Height: 1.8″
Width: 7.9″
Depth: 7.9″
Weight (Approximate): 1.30 lb
Miscellaneous
Package Contents
FortiAP S223E Wireless Access Point
