FAP-224E-E Technical Specifications

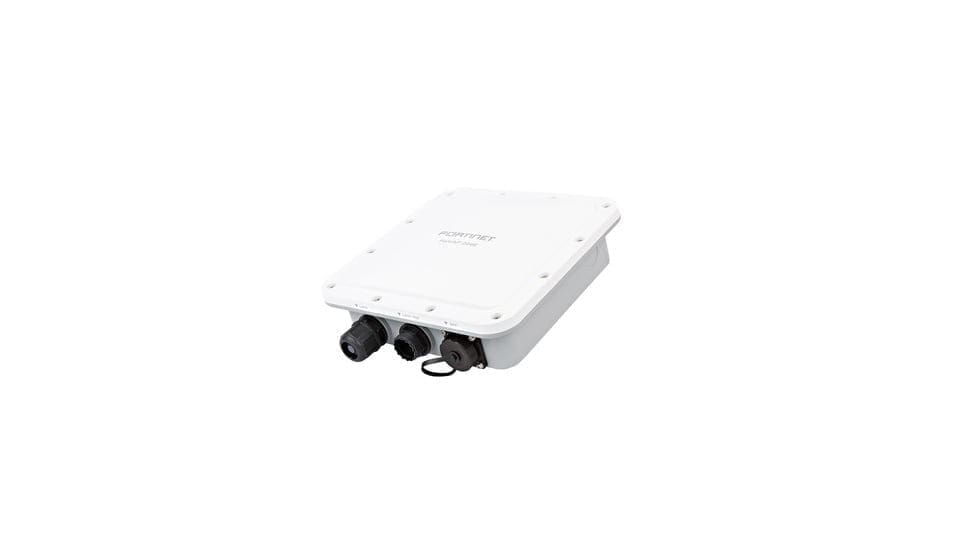

Fortinet FortiAP FAP-224E IEEE 802.11ac 1.24 Gbit/s Wireless Access Point
Manufacturer: Fortinet, Inc
Brand Name: Fortinet
Product Line: FortiAP
Product Model: FAP-224E
Product Name: FortiAP FAP-224E Wireless Access Point
Product Type: Wireless Access Point
Technical Information−
Technical Information
Wireless LAN: Standard IEEE 802.11ac
Frequency Band: 5 GHz, 2.40 GHz
Total Number of Antennas: 4
Number of Internal Antennas: 4
Wireless Transmission Speed: 1.24 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network: (RJ-45) Ports 2
PoE (RJ-45) Port: Yes
Management Port: Yes
Physical Characteristics
Form Factor: Pole-mountable, Wall Mountable
Height: 2.7″
Width: 8.4″
Depth: 8.4″
Weight (Approximate): 3.80 lb
Miscellaneous
Package Contents
FortiAP FAP-224E Wireless Access Point
Wall/Pole Mount Kit
6M Grounding Cable
Environmentally Friendly: Yes
