FAP-223E-A Technical Specifications

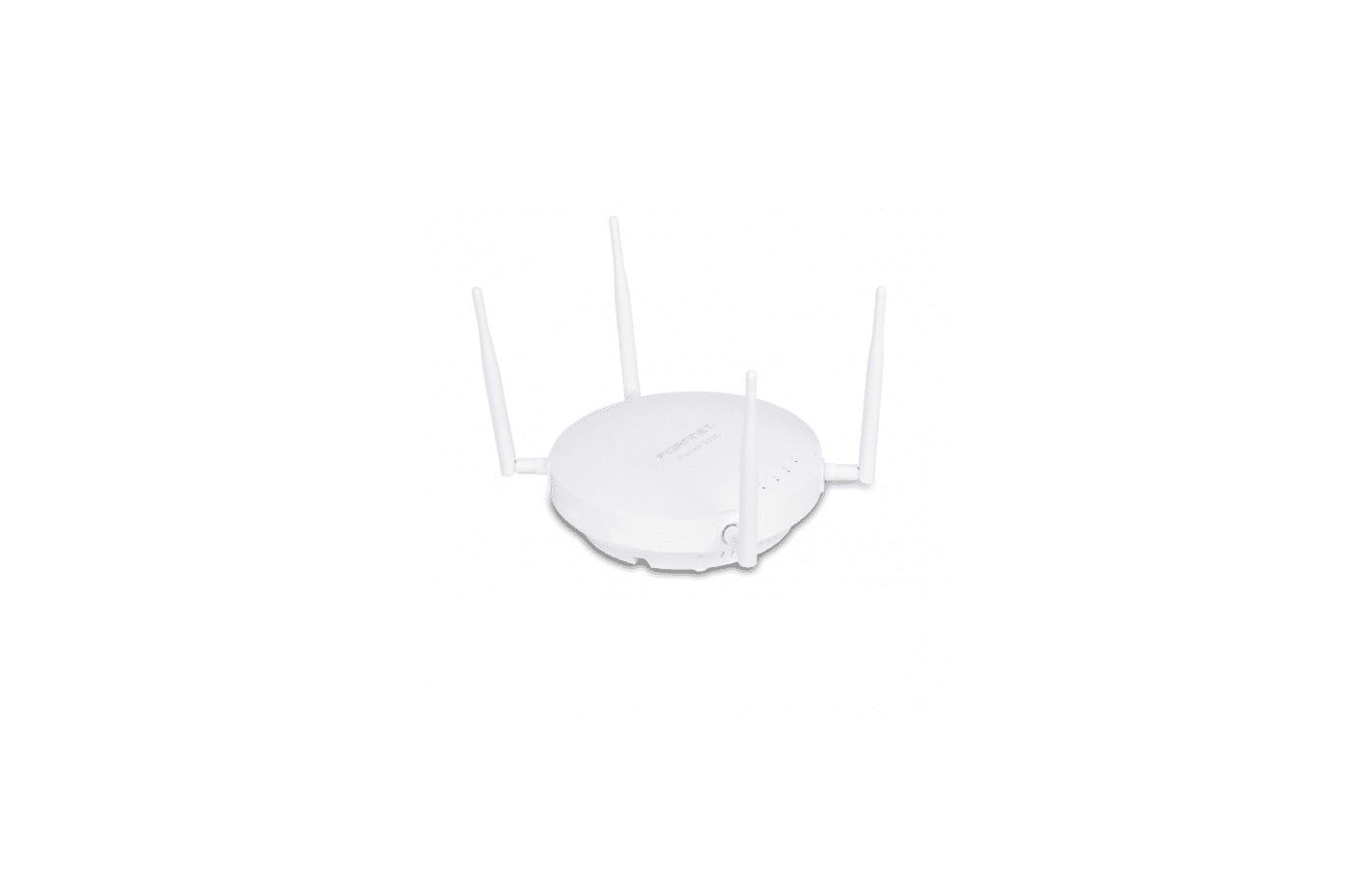

Fortinet FortiAP 223E IEEE 802.11ac 1.14 Gbit/s Wireless Access Point
Manufacturer: Fortinet, Inc
Manufacturer Part Number: FAP-223E-A
Brand Name: Fortinet
Product Line: FortiAP
Product Model: 223E
Product Name: FortiAP 223E Wireless Access Point
Product Type: Wireless Access Point
Technical Information−
Technical Information
Wireless LAN: Standard IEEE 802.11ac
Frequency Band: 5 GHz, 2.40 GHz
Total Number of Antennas: 4
Number of External Antennas: 4
Wireless Transmission Speed: 1.14 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network: (RJ-45) Ports 1
PoE PD Port: Yes
VGA: No
HDMI: No
Powerline: No
Management Port: Yes
Physical Characteristics
Form Factor: Ceiling Mountable, Wall Mountable, Rail-mountable
Height: 1.9″
Diameter: 6.3″
Weight (Approximate): 1.10 lb
Miscellaneous
Package Contents
FortiAP 223E Wireless Access Point
Ceiling, T-Rail and Wall mount kit
