FAP-223B-A Technical Specifications

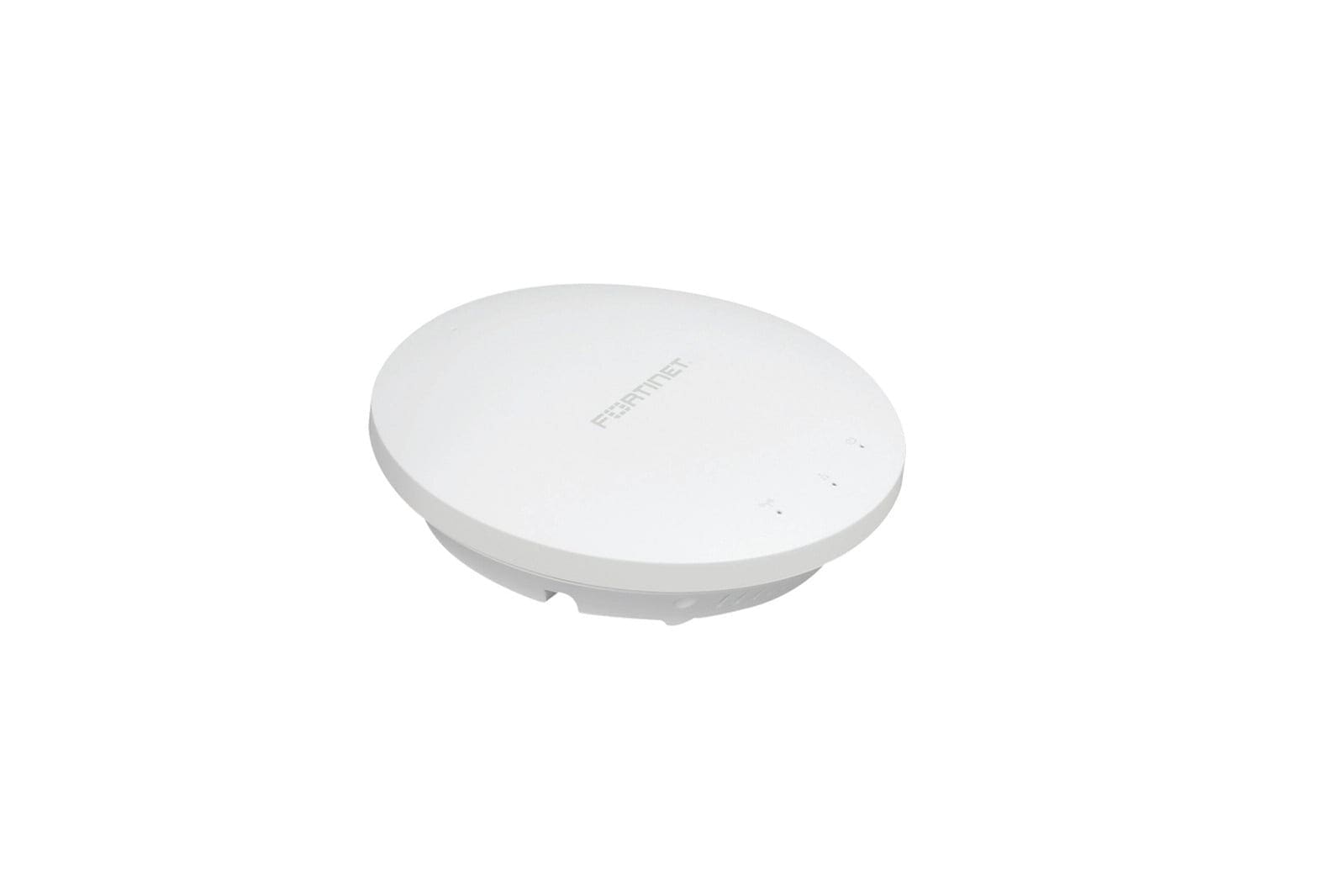

Fortinet Fortiap 223B 300 Mbps Wireless Access Point
General
Device Type: Wireless access point
Ruggedized Design: Indoor
Width: 6.5 in
Depth: 6.5 in
Height: 2 in
Weight: 12.34 oz
Localization: United States
Networking
Form Factor: External
Connectivity Technology: Wireless
Data Transfer Rate: 600 Mbps
Data Link Protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Frequency Band: 2.4 GHz, 5 GHz
Encryption Algorithm: RC4, AES, PEAP, TKIP, WPA, WPA2, AES-CCMP
Antenna
Antenna: External detachable
Antenna Qty: 4
Expansion / Connectivity
Interfaces: 1 x 1000Base-T – RJ-45
Miscellaneous
MTBF: 10 years
Power
Power Over Ethernet (PoE) Supported: PoE
Power Device: External power adapter
Voltage Required: AC 120/230 V ( 50/60 Hz )
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 – 90% (non-condensing)
