FAP-222E-B Technical Specification

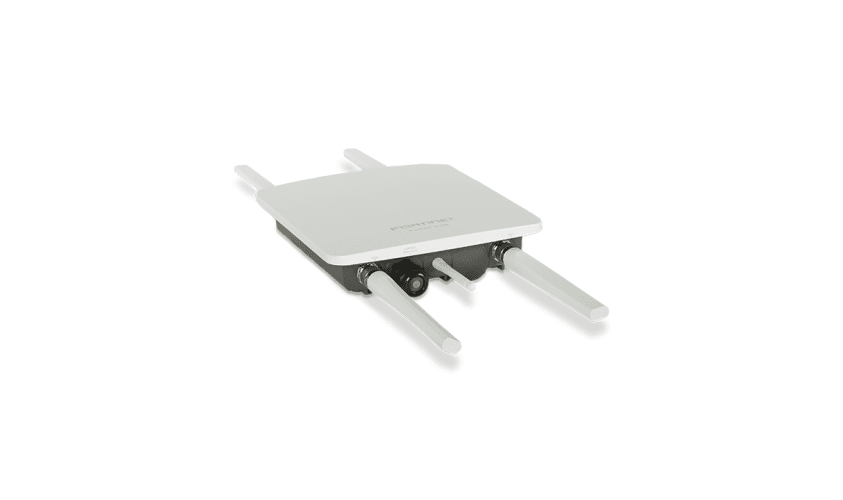

Fortinet FortiAP FAP-222E IEEE 802.11ac 1.24 Gbit/s Wireless Access Point
Manufacturer: Fortinet, Inc
Brand Name: Fortinet
Product Line: FortiAP
Product Model: FAP-222E
Product Name: FortiAP FAP-222E Wireless Access Point
Product Type: Wireless Access Point
Technical Information−
Technical Information
Wireless LAN: Standard IEEE 802.11ac
Frequency Band: 2.40 GHz, 5 GHz
Total Number of Antennas: 5
Number of External Antennas: 5
Wireless Transmission Speed: 1.24 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network: (RJ-45) Ports 1
PoE PD Port: Yes
Physical Characteristics
Form Factor: Wall Mountable, Pole-mountable
Height: 2.1″
Width: 8.7″
Depth: 9.8″
Weight (Approximate): 3.40 lb
Miscellaneous
Package Contents
FortiAP FAP-222E Wireless Access Point
Mounting Kit For Wall Or Pole
Grounding Cable
4 x Dipole WiFi Antennas
