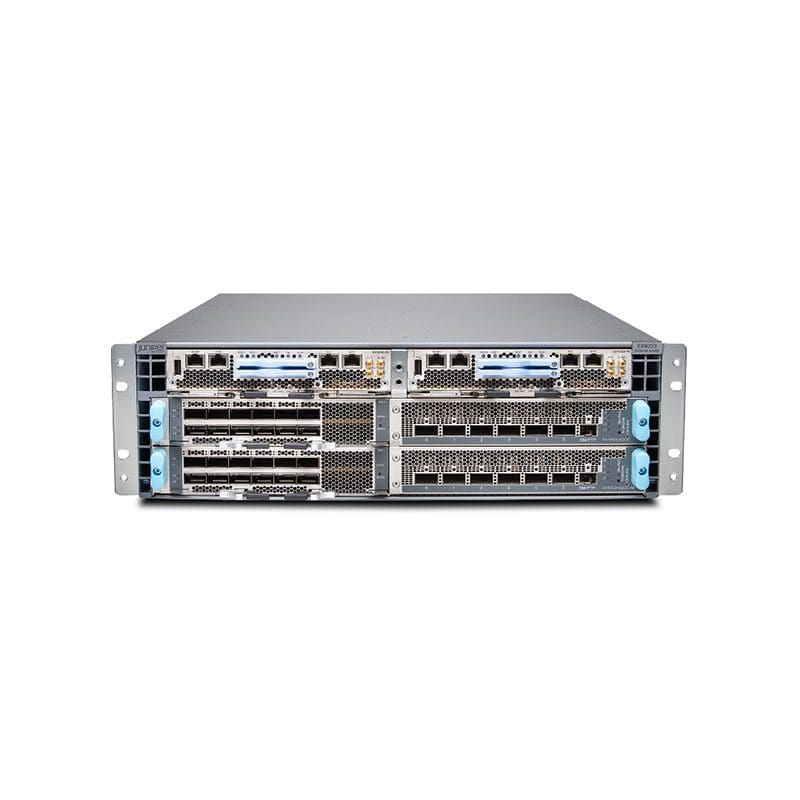

Refurbished EX9253-AC-BND1 Technical Specifications
Juniper Networks EX Series 9253 Bundle switch managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :9253
Edition :Bundle
Bundled with :Juniper Networks EX9253-6Q12C Line Card
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Built-in Devices :2 x 100 GB SSD
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :3
Processor
Type :Xeon
Installed Qty :1
Manufacturer :Intel
Clock Speed :1.6 GHZ
RAM
Installed Size :64 GB
Performance
Performance :Bandwidth per slot: 2.4 Tbps, Maximum throughput: 4.8 Tbps, Bandwidth (full duplex): 1.2 Tbps
Capacity
Capacity :QoS hardware queues per port: 8, Virtual interfaces (VLANs): 32000, FIB entries: 512000, ARP entries: 512000, Multicast entries (IPv4): 256000, Policies: 16000, Multicast entries (IPv6): 256000
Networking
Type :Switch
Subcategory :Network hubs and switches
Form Factor :Rack-mountable
Advanced Switching :Layer 3
Routing Protocol :Bidirectional Forwarding Detection (BFD), PIM-SM, CIDR, MLD, RIP-2, MSDP, MLDv2, OSPF, OSPFv2, PIM-SSM, VRRP, IGMPv3, OSPFv3, IGMP, IGMPv2, Static IP routing, RIP-1, PIM-DM, RIPng
MAC Address Table Size :1M entries
Jumbo Frame Support :9192 bytes
Manageable :Yes
Remote Management Protocol :CLI, SNMP 3, SSH-2, Telnet, SNMP 2c, RMON 9, RMON 1, RMON 3, SNMP 1, RMON 2
Status Indicators :Alarm, Link OK, SSD activity, Online
Features :DHCP server, Spanning Tree Protocol (STP) support, IPv6 support, NTP time synchronization, SNTP support, ARP support, Graceful Route Engine Switchover (GRES), sFlow, High Availability, DoS attack prevention, IPv4 support, Rapid Spanning Tree Protocol (RSTP) support, Load balancing, DHCP relay, VLAN Spanning Tree Protocol (VSTP), RARP support, Firewall protection, Non-Stop Bridging (NSB), Non-Stop Routing (NSR), Trivial File Transfer Protocol (TFTP) support, Port mirroring, Strict Priority (SP), VLAN support, Link Aggregation Control Protocol (LACP), Static routing, Weighted Round Robin (WRR) queuing, Quality of Service (QoS), Generic VLAN Registration Protocol (GVRP), Weighted Random Early Detection (WRED), Management Information Base (MIB), BOOTP support, Redundant fans, LLDP support, Multiple Spanning Tree Protocol (MSTP) support, IGMP snooping, Fan tray, Neighbor Discovery Protocol (NDP), Modular design, Redundant hot swappable fans, GRE tunneling, Firmware upgradable, Temperature sensor, Reset button, Syslog support, Multicast Source Discovery Protocol (MSDP), ASIC VPN, Access Control List (ACL) support, 4 fan trays
Compliant Standards :IEEE 802.1Q, IEEE 802.3ba, IEEE 802.1p, IEEE 802.3u, IEEE 802.3ah, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1D, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3, IEEE 802.1s, IEEE 802.1ab (LLDP)
Expansion Slots
Expansion Slots :3 (total) / 3 (free) x line-card slot
Interface Provided
Interfaces :1 x USB Type A, 1 x serial RJ-45 management, 1 x RJ-45 management, 1 x console RJ-45 AUX
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :N+1
Installed Qty :3
Max Supported Qty :6
Power Provided :1600 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :2692 watt
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :3
Authentication Method :TACACS+, RADIUS
Compliant Standards :EN 61000-4-3, EN 61000-4-6, CISPR 24, CISPR 22, EN 61000-4-5, TUV GS, CSA C22.2 No. 60950-00, BSMI CNS 13438, EN55024, VCCI V-3, cUL, EN 61000-4-2, VCCI V-4, EN 61000-4-4, EN 61000-4-11, RoHS 5/6, EN 300 386, GR-1089-CORE, EN 60950, ETSI, EN55022, EN 61000-3-3, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1, NEBS level 3, ICES-003 issue 4 Class A, EN 60825-1, EMC, FCC CFR47 Part 15, EN 61000-3-2:2006, IEC 60950-1, UL 1950 Third Edition, EN 60825-2, GR-63-CORE
Dimensions & Weight
Width :19 inch
Depth :30 inch
Height :5.2 inch
Weight :120 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 95% (non-condensing)
