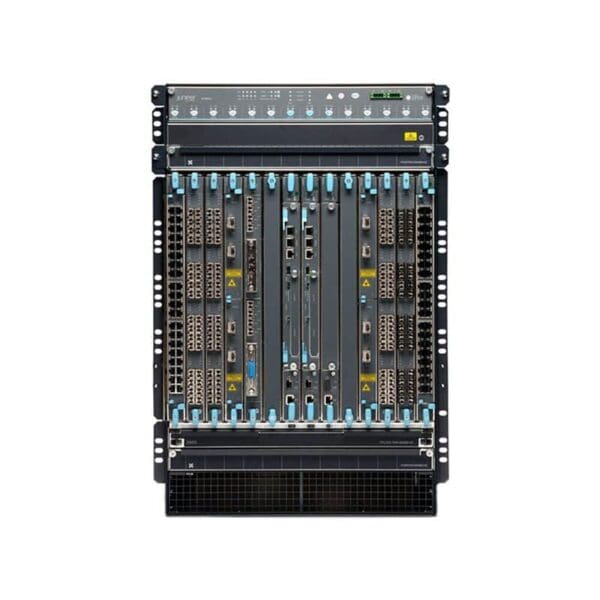

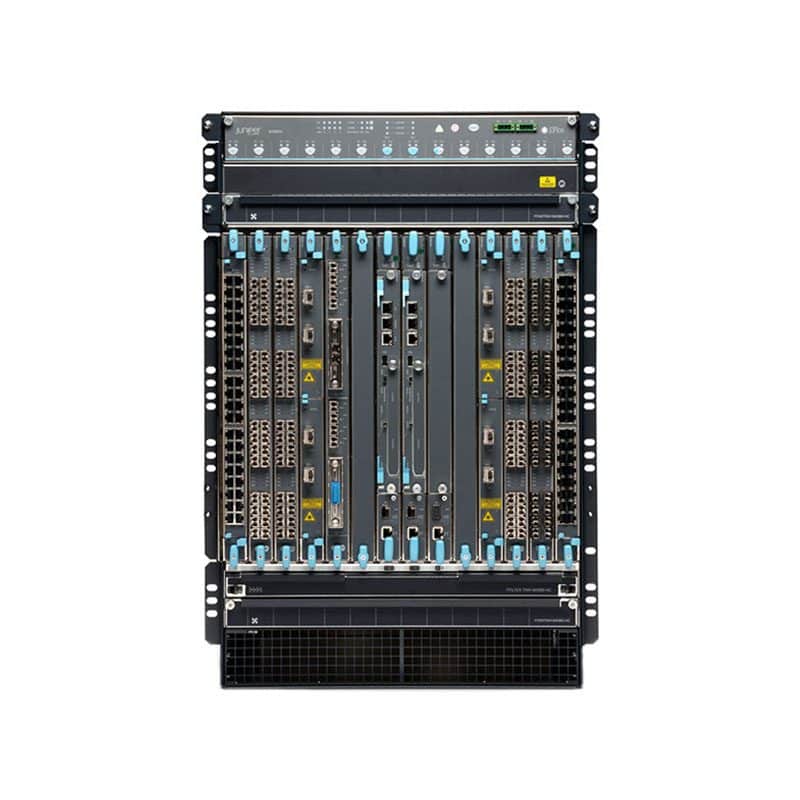

EX9214-RED3B-AC Technical Specifications
Juniper Networks EX Series 9214 Switch Managed Rack Mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :9214
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Built-in Devices :2 x 32 GB SSD, Midplane
Installed Devices / Modules Qty :5
Supported Devices / Modules Qty :16
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :1.73 GHZ
RAM
Installed Size :32 GB
Performance
Performance :Backplane switching capacity: 13.2 Tbps, Per slot per fabric: 480 Gbps
Capacity
Capacity :Multicast entries (IPv6): 256000, Virtual interfaces (VLANs): 32000, Multicast entries (IPv4): 256000, IPv6 routing table entries: 1000000, ARP entries: 256000, Policies: 16000, QoS hardware queues: 8, IPv4 routing table entries: 1000000
Networking
Type :Switch
Subcategory :Network hubs and switches
Form Factor :Rack-mountable
Advanced Switching :Layer 3
