EX4650-48Y-DC-AFI Technical Specification

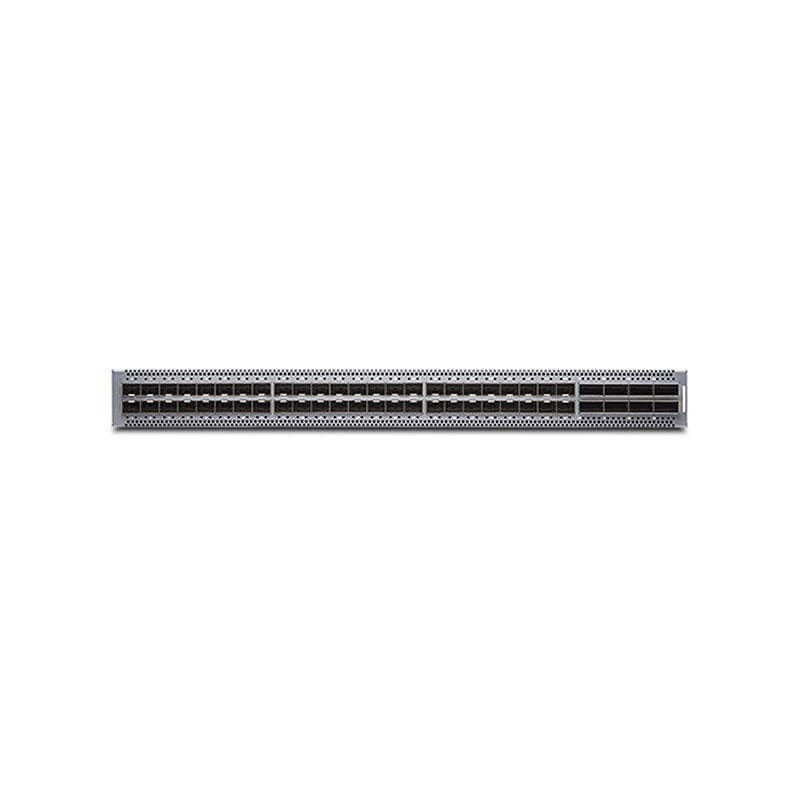

Juniper Network EX4650 48x25G + 8x100G 1U DC PSU side intake and port side exhaust, back to front airflow
Hardware Specifications
CPU 2.3 GHz quad-core Intel CPU
Memory 16 GB
Storage 64 GB SSD storage
Switching Capacity 2 Tbps/1.49 Bpps
Weight 23.7 lb (10.75 kg)
Dimensions (HxWxD)
1.72 x 17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm)
Switching mode: Cut-through and store-and-forward
back to front airflow for cold aisle deployment
Management and console port connections
Power Consumption
Max load 450 W; typical load 260 W; idle load 160 W
Interface Options
1GbE SFP: 48 (24 copper 1GbE)
10GbE SFP+: 48/80 (with breakout cable)
25GbE SFP28: 48/80 (with breakout cable)
40GbE QSFP+: 8
100GbE QSFP28: 8
