EX4600-40F-AFO-T Technical Specifications

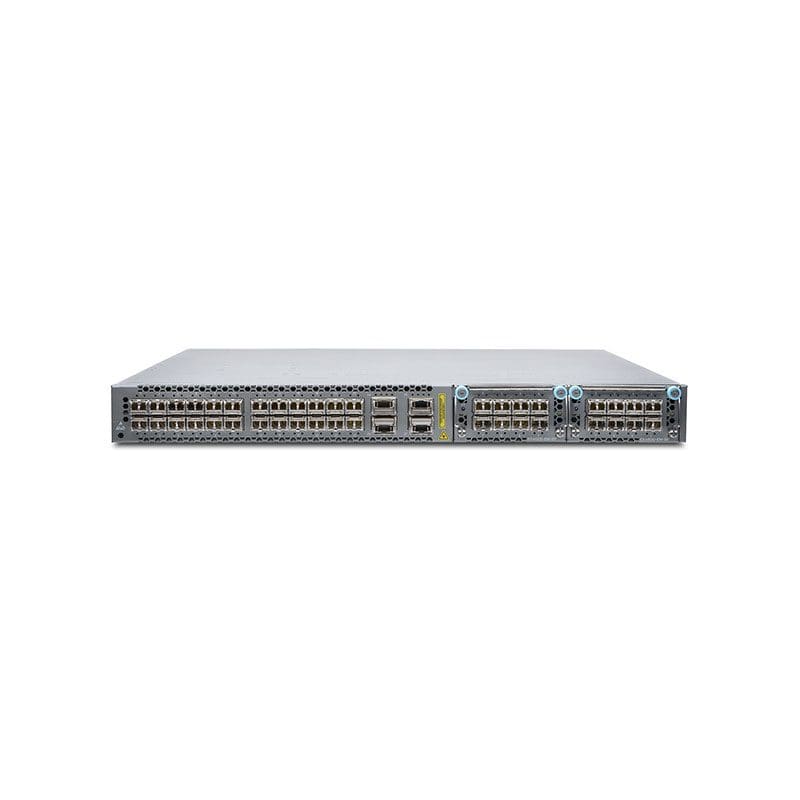

Juniper EX Series EX4600 switch 24 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :EX4600
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Performance
Performance :Switching capacity: 1.07 Bpps, Switching capacity: 1.44 Tbps
Capacity
Capacity :Maximum member ports per LAG: 32, QoS hardware queues per port: 12, Equal-Cost Multipathing (ECMP) ways: 64, IPv6 routes (Unicast): 64000, IPv6 routes (Multicast): 52000, IPv4 routes (Multicast): 104000, LAG groups: 128, VLAN Spanning Tree Protocol instances: 253, ARP entries: 48000, Firewall policies: 4000, IPv4 routes (Unicast): 128000, Multiple Spanning Tree Protocol instances: 64, IPv4 hosts: 208000, Virtual interfaces (VLANs): 4091
