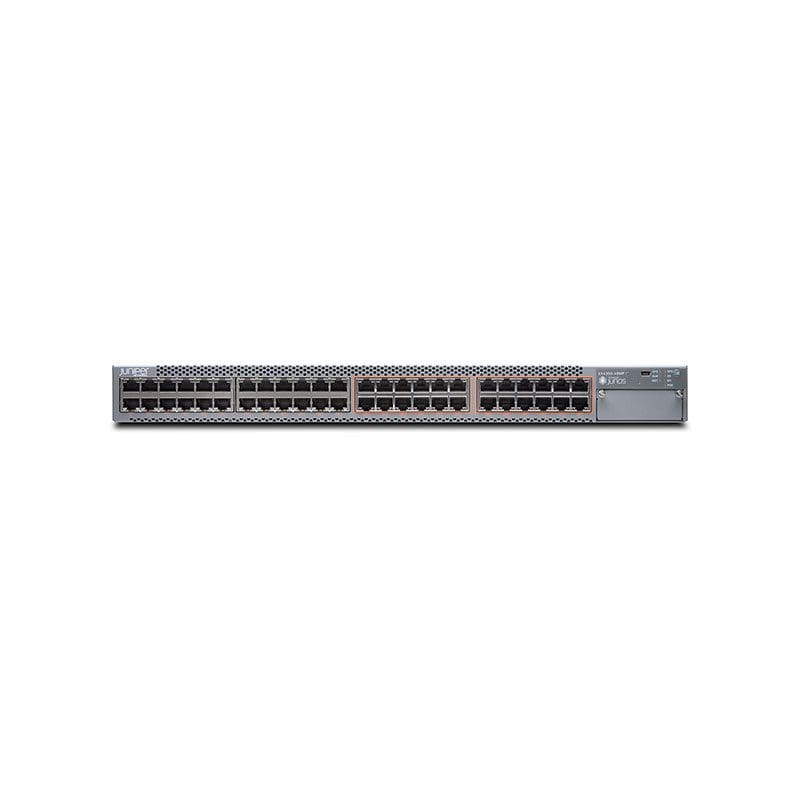

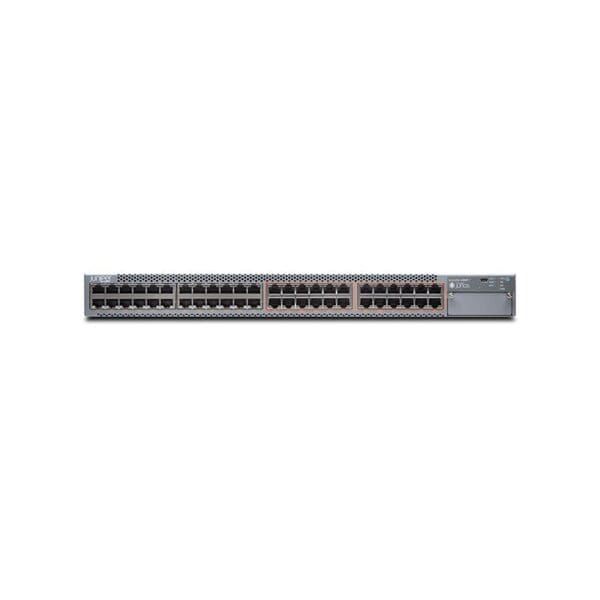

EX4300-48MP Technical Specifications
Juniper EX Series switch 48 ports managed rack-mountable
Dimensions & Weight
Width 17.4 in
Depth 18.4 in
Height 1.7 in
Weight 16.09 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 10 – 85% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 0 – 95% (non-condensing)
General
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Front to back airflow rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 24 x 10/100/1000 + 24 x 100/1000/2.5G/5G/10GBase-T (PoE++)
Power Over Ethernet (PoE) PoE+
PoE Budget 1100 W
Performance Switching capacity: 960 Gbps ¦ Throughput: 714 Mpps
Capacity Virtual interfaces (VLANs): 4093 ¦ VLAN Spanning Tree Protocol instances: 510
