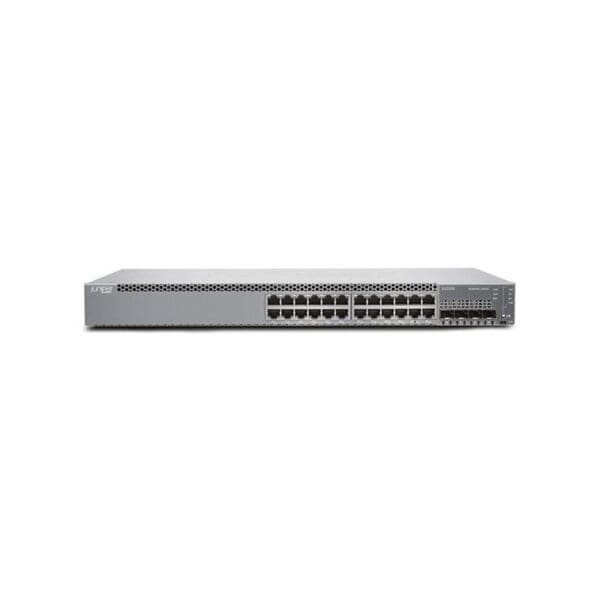

EX3400-24P Technical Specifications
Juniper Networks EX Series switch 24 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Processor
Installed Qty :1
Clock Speed :1 GHZ
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Performance
Performance :Throughput: 214 Mpps, Switching capacity (64-byte packet size): 288 Gbps
Capacity
Capacity :IPv4 hosts: 36000, Multiple Spanning Tree Protocol instances: 64, VLAN Spanning Tree Protocol instances: 510, ARP entries: 8000, IPv6 routes (Multicast): 2000, Virtual interfaces (VLANs): 4093, ACL entries: 1500, LAG groups: 128, Maximum of neighboring networks: 8000, IPv4 routes (Multicast): 4000, QoS hardware queues per port: 12, IGMP snooping entries: 1000, Maximum member ports per LAG: 16, IPv6 hosts: 18000
