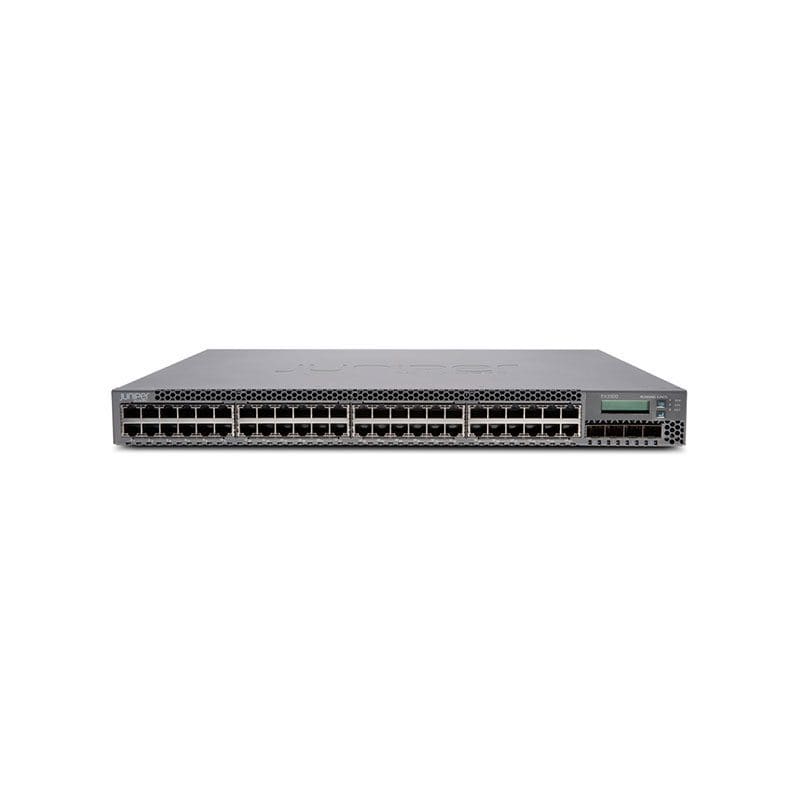

Refurbished EX3300-48P Technical Specifications
Juniper Layer 3 Switch 48 Ports Manageable 48 x POE+ 4 x Expansion Slots 10/100/1000Base-T, 10/100Base-TX PoE Ports
Key Features :
Device Type : Switch – 48 Ports – Stackable
Enclosure Type : Desktop – 1u
Ports : 24 X 10/100/1000 + 4 X 10 Gigabit Ethernet / 1 Gigabit Ethernet Sfp+
Power Over Ethernet (Poe) : Yes
Capacity : Virtual Interfaces (Vlans) : 4096 Igmp Snooping Entries : 3000
Mac Address Table Size : 16k Entries
Jumbo Frame Support : 9216
Max Units In A Stack : 6
Routing Protocol : Rip-1, Rip-2, Static Ipv4 Routing
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Ssh, Ssh-2
Encryption Algorithm : Md5, Tls, Peap, Ttls
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (Ssh2), Extensible Authentication Protocol :(Eap)
Features : Flow Control, Power Over Ethernet (Poe), Bootp Support, Rarp Support, Arp Support, Vlan Support, Auto-Uplink (Auto Mdi/Mdi-X), Dos Attack Prevention, Diffserv Support, Store And Forward, Ipv6 Support, Sntp Support, Spanning Tree Protocol (Stp) Support, Rapid Spanning Tree Protocol (Rstp) Support, Vlan Stacking, Multiple Spanning Tree Protocol (Mstp) Support, Dhcp Snooping, Quality Of Service (Qos), Dhcp Server, Temperature Sensor, Time Domain Reflectometry (Tdr), Poe+, Front To Back Airflow, Per-Vlan Spanning Tree Plus (Pvst+), Ipv4 Support, Lldp Support, Link Aggregation Control Protocol (Lacp)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (Lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (Lldp), Ieee 802.3at
Processor : 1 X Arm : 1 Ghz
Ram : 1 Gb
Flash Memory : 1 Gb
Status Indicators : Lcd Display
Expansion / Connectivity :
Interfaces : 4 X Sfp/Sfp+ 48 X 10base-T/100base-Tx/1000base-T – Rj-45 – Poe
Power :
Power Device : Power Supply
Voltage Required : Ac 120/230 V
Power Consumption Operational : 900 Watt
