EX2300-C-12P-TAA Technical Specifications

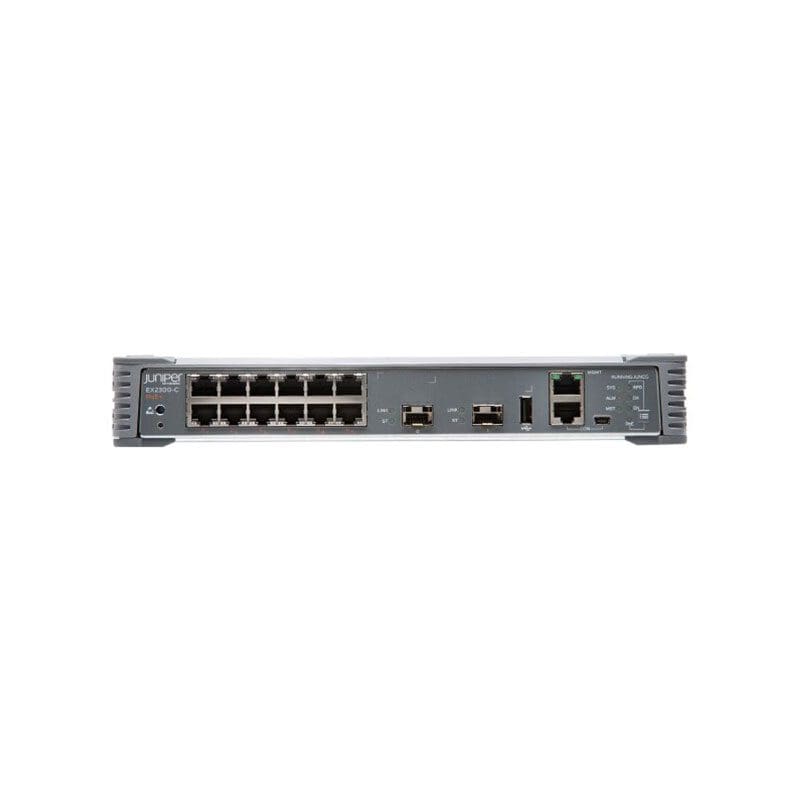

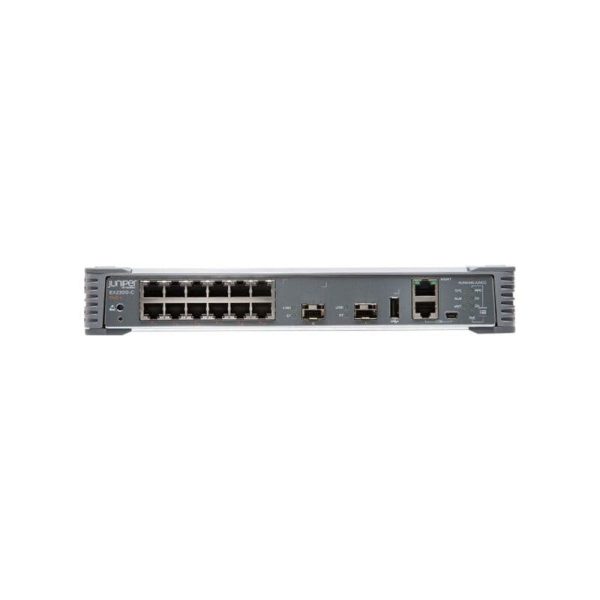

Juniper EX Series EX2300-C-12P switch 12 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :EX2300-C-12P
Packaged Quantity :1
Processor
Installed Qty :1
Manufacturer :ARM
Clock Speed :1.25 GHZ
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Performance
Performance :Throughput: 47 Mpps, Switching capacity: 64 Gbps
Capacity
Capacity :IPv6 routes (Unicast): 128, IPv6 routes (Multicast): 1024, IPv4 routes (Multicast): 2048, IPv6 hosts: 2048, QoS hardware queues per port: 8, Virtual interfaces (VLANs): 2048, Maximum member ports per LAG: 8, Multiple Spanning Tree Protocol instances: 64, IGMP snooping entries: 1000, LAG groups: 128, IPv4 hosts: 4096, ARP entries: 1024, Maximum of neighboring networks: 750, IPv4 routes (Unicast): 512
