EX2300-48P Technical; Specifications

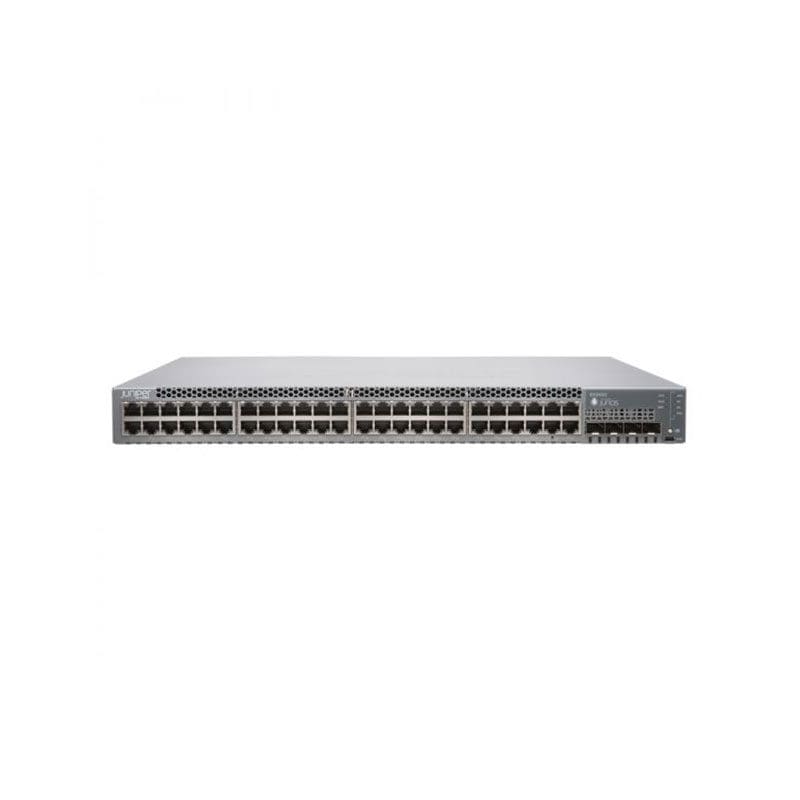

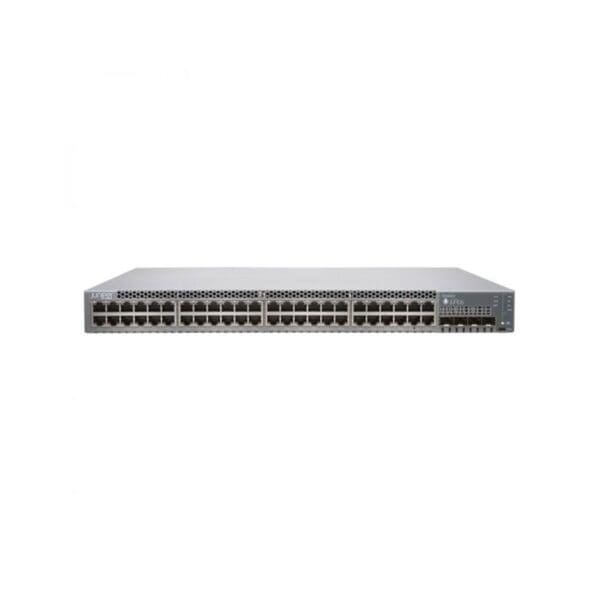

JUNIPER EX2300-48P EX2300 48-port switch 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX Series
Model :EX2300-48P
Packaged Quantity :1
Chassis
Airflow Direction :Side to side airflow
Processor
Installed Qty :1
Manufacturer :ARM
Clock Speed :1.25 GHZ
RAM
Installed Size :2 GB
Flash Memory
Installed Size :2 GB, 2 GB
Performance
Performance :Backplane speed: 80 Gbps, Throughput: 130 Mbps, Switching capacity: 176 Gbps
Capacity
Capacity :VLAN groups: 4093, Host IPv6 routes: 2048, Maximum member ports per LAG: 8, Host IPv4 routes: 4096, Layer 3 multicast groups: 2048, VSTP instances: 253, IGMP snooping entries: 2000, ARP entries: 1500, QoS hardware queues per port: 8, IPv6 route prefixes: 512, Access Control Entries (ACEs) per ACL: 2000, Firewall ingress filters: 256, IPv4 routes (Multicast): 2048,
