Refurbished EX-XRE200-AC Technical Specifications

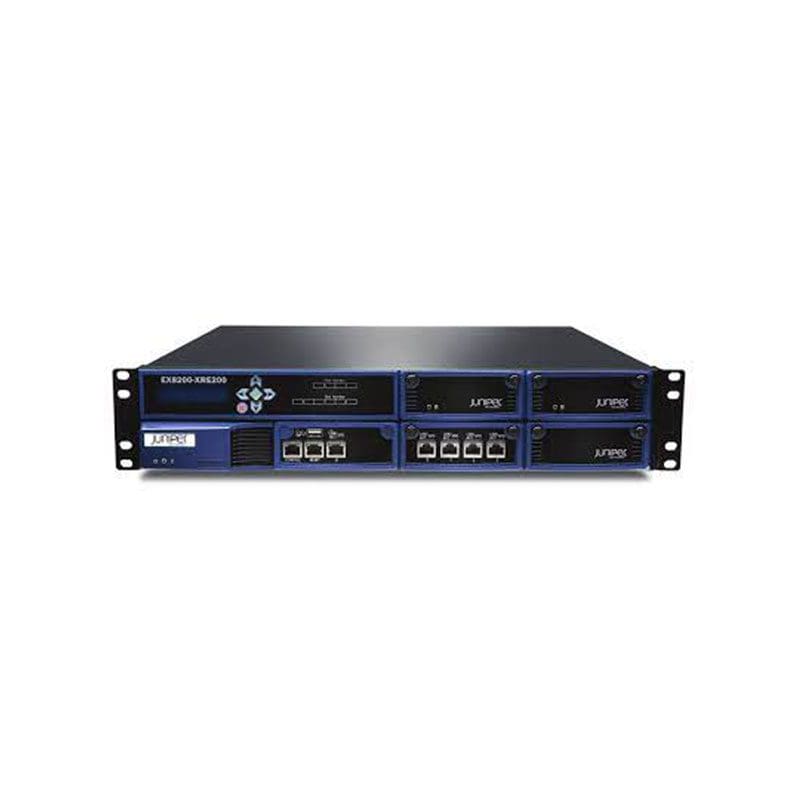

Juniper Networks EX-series XRE200 router rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks EX-series
Model :XRE200
Packaged Quantity :1
Processor
Type :Core 2 Duo
Installed Qty :1
Manufacturer :Intel
Clock Speed :2.1 GHZ
RAM
Technology :SDRAM
Installed Size :4 GB
Flash Memory
Installed Size :4 GB, 4 GB
Hard Drive
Capacity :360 GB
Modem
Type :None
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Fast Ethernet, Gigabit Ethernet
Routing Protocol :OSPF, IS-IS, IGMPv3, IGMPv2, RIP-2, PIM-SM, IGMP, PIM-DM, RIP-1, OSPFv2, VRRP, PIM-SSM, BGP, MSDP
Jumbo Frame Support :9216 bytes
Network / Transport Protocol :UDP/IP, ARP, TCP/IP
Remote Management Protocol :CLI, SSH-2, Telnet, SSH
Status Indicators :LCD display, Power, HDD activity, Status, Alert
Features :IPv6 support, Layer 3 switching, Bidirectional Forwarding Detection (BFD), Virtual Route Redundancy Protocol (VRRP) support, RADIUS support, Spanning Tree Protocol (STP) support, Layer 2 switching, Hot swappable dual fans, SSH support, Redundant trunk group (RTG), Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), ARP support, Multiple Spanning Tree Protocol (MSTP) support, IGMP snooping
Compliant Standards :IEEE 802.1w, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1s, IEEE 802.1D
Expansion Slots
Expansion Slots :Expansion slot
Interface Provided
Interfaces :Management: 1 x console – RJ-45, 1 x auxiliary – RJ-45, 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Management: 1 x RJ-45
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Power Provided :250 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Height (Rack Units) :2
Authentication Method :TACACS+, RADIUS
Compliant Standards :FCC CFR47 Part 15, VCCI Class A ITE, RoHS, EN300-386, ICES-003 Class A, EN55022 Class A, CSA C22.2 No. 60950-1, UL 60950-1, EN55024, IEC 60950-1, EN 60825-1, EN 60950-1, CISPR 22 Class A, EN 300 386
Dimensions & Weight
Width :17.2 inch
Depth :17.7 inch
Height :3.5 inch
Weight :29.1 lbs
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :8 – 90% (non-condensing)
