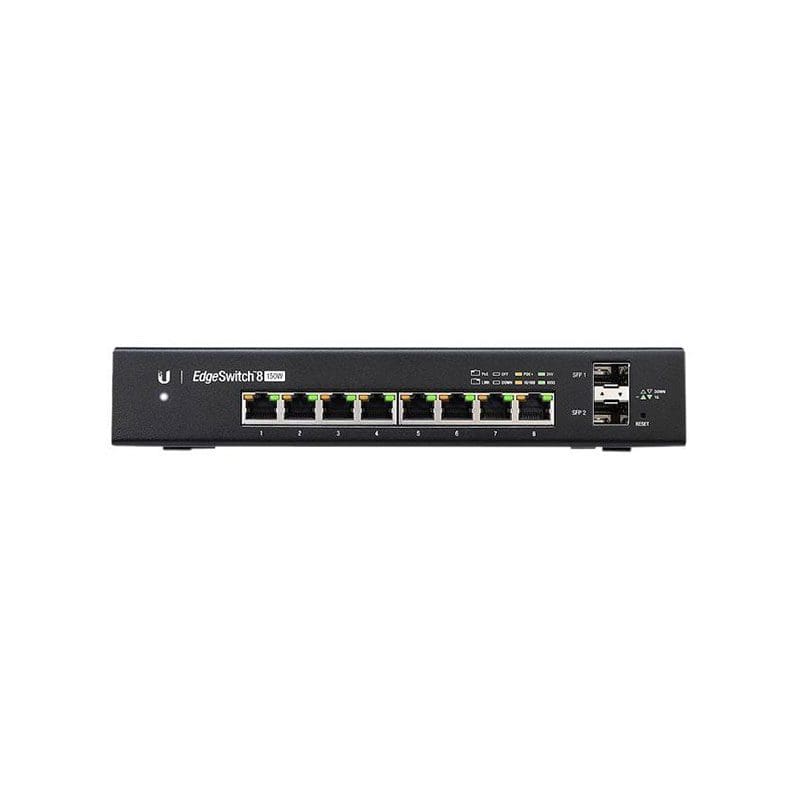

ES-8-150W Technical Specifications
Ubiquiti Networks Managed PoE+ Gigabit Switches with SFP, 8-Gigabit RJ45 Ports, 2-SFP Ports
Manufacturer: Ubiquiti Networks
Brand: Ubiquiti Networks
Format & Standards
Format: Wall Mountable
Network Management Type: Managed
Ports & Interface
Primary Ports: 8 x RJ45 + 2 x SFP
Primary Port Speed: 10/100/1000Mbps
Data Transmission
VLAN Support: Yes
Details
PoE: Yes
LEDs PoE: Speed/Link/Activity
Includes PoE Output: 150W
Power Method: 100-240V AC / 50-60 Hz, AC / DC Integrated PSU, Universal Input
Features
Features Non-Blocking Throughput: 10 Gbps
Switching Capacity: 20 Gbps
Forwarding Rate: 14.88 Mpps
Maximum Power Consumption: 150W
Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Wall mountable with Mount Brackets (Included)
Desktop-Mountable (Do not physically stack the.)
DC Input Option (Redundant or Stand-Alone)
