ES-10X Technical Specifications

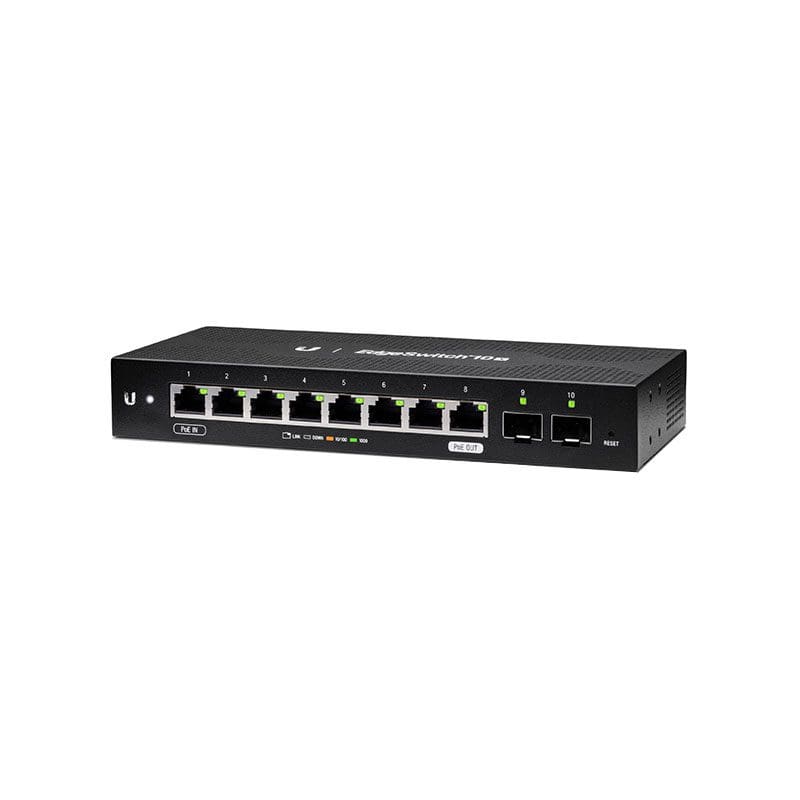

Ubiquiti Networks EdgeSwitch 10X 10-Port Gigabit PoE-Compliant Managed Switch with SFP
Ports 7 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink)
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE
2 x 10/100/1000 Mb/s Gigabit SFP (Uplink) PoE
Protocols
Layer Services Supported Layer 2 Support
Transmission Method Store-and-Forward
Performance
Forwarding Rate 14.88 Mpps
Switching Bandwidth 20 Gb/s
10 Gb/s (Non-Blocking)
Electrical
Power Draw 8.0 W (Max)
DC Input Power 9 to 30 VDC at 1 A
PoE Power Budget 15 W
PoE per Port 15 to 15 W
Power Supply Type Internal
Environmental
Operating Temperature 14 to 122°F / -10 to 50°C
Operating Humidity 5 to 95%
General
Cooling System Passive
Indicator Lights Link/Activity, Link/Activity/Speed, Status
