ER-12P Technical Specifications

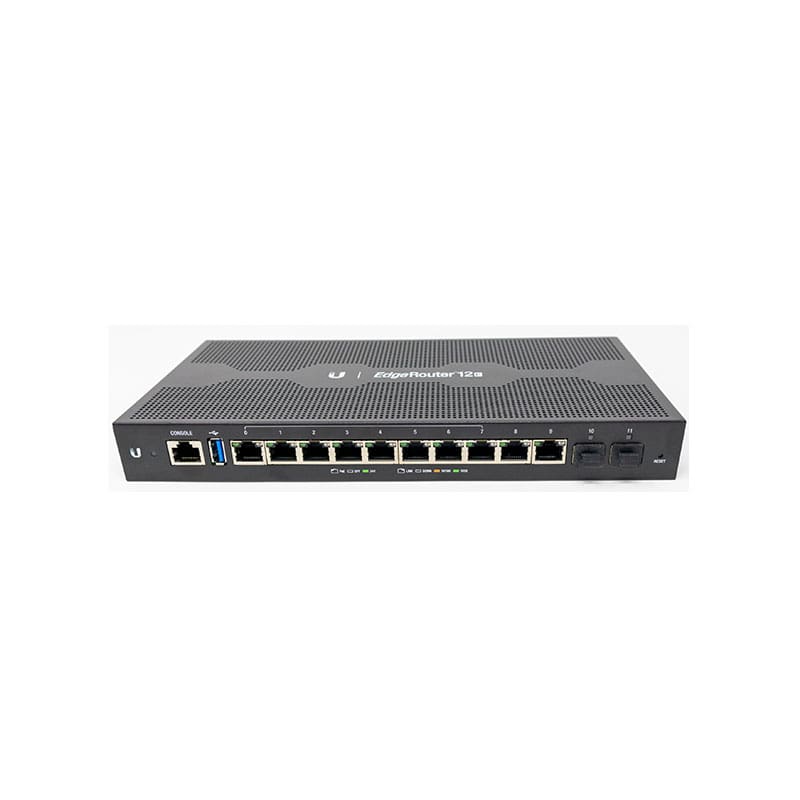

Ubiquiti Edge MAX Edge Router 12 Port Router
Dimensions: 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22″)
Weight: 700 g (1.54 lb)
Max. Power Consumption: 20W (Excludes PoE Output)
Power Method: External AC/DC Power Adapter, 12W (24V, 2.5A) (Included)
Power Supply: External AC/DC Adapter
Supported Voltage Range: 9 – 30VDC
Button: Reset
LEDs:
– Data Ports: Speed/Link/Activity, PoE
– SFP Data Port: Link/Activity
Networking Interfaces:
– Management: 1 x RJ45 Serial Port, 10 x Ethernet Ports (Default Port 0)
– Networking: 10 x 10/100/1000 RJ45 Ports with PoE, 2 x 1 Gbps SFP Ports
Layer 3 Forwarding Performance:
– Packet Size: 64 Bytes: 3,400,000 pps,
– Packet Size: 1518 Bytes or Larger: 6.8 Gbps (Line Rate)
Processor: 4-Core 1 GHz, MIPS64
System Memory: 1 GB DDR3 RAM
On-Board Flash Storage: 4 GB eMMC, 8 MB SPI NOR
Mounting: Wall, Rack*
Operating Temperature: -10 to 40° C (14 to 104° F)
