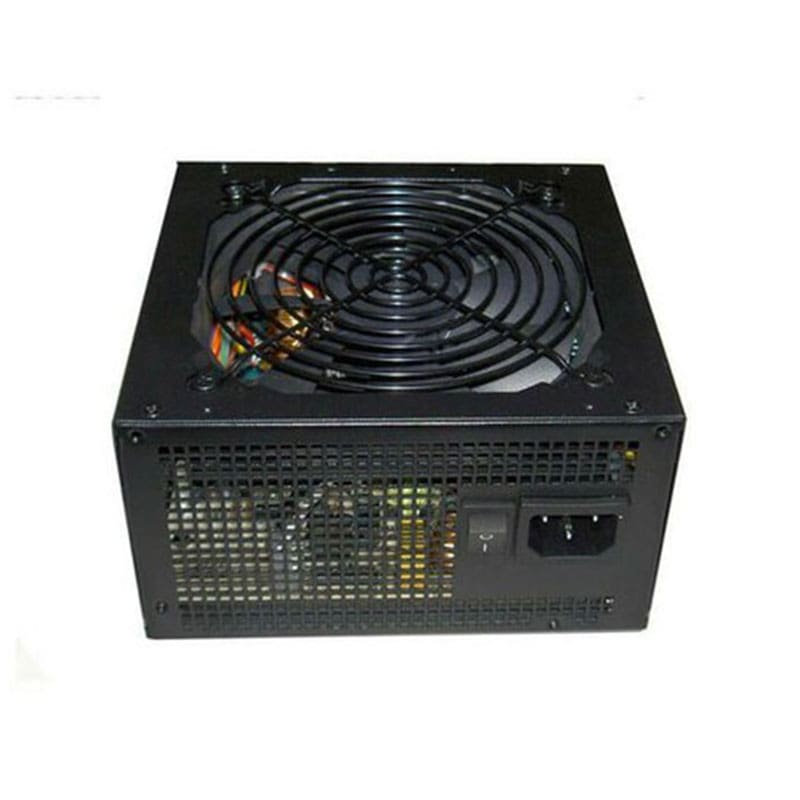

EP-700PM Technical Specifications
EPower 700 Watts 115 230V AC 10 6A 50 60Hz ATX12V Power Supply
Device Type: Power supply – internal
Specification Compliance: ATX12V 2.3
Weight: 6 lbs
Input Voltage: AC 115/230 V
Output Voltage: +3.3, +5, ±12 V
Power Capacity: 700 Watt
Cooling System: 140 mm fan
Dimensions (WxDxH): 5.9 in x 6.2 in x 3.3 in
PSU Form Factor: ATX
Frequency Required: 50/60 Hz
Power Output Connectors Details:
1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 8 x 15 pin Serial ATA power ¦ 8 x 4 pin internal power ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 6 pin PCI Express power ¦ 2 x 4 pin mini-power connector
Output Current: +3.3V – 26 A ¦ +5V – 26 A ¦ +12V1 – 20 A ¦ +12V2 – 20 A ¦ -12V – 0.8 A ¦ +5VSB – 3 A
Efficiency: 75%
Features: On/off switch, non-modular
Compliant Standards: FCC
Width: 5.9 in
Depth: 6.2 in
Height: 3.3 in
